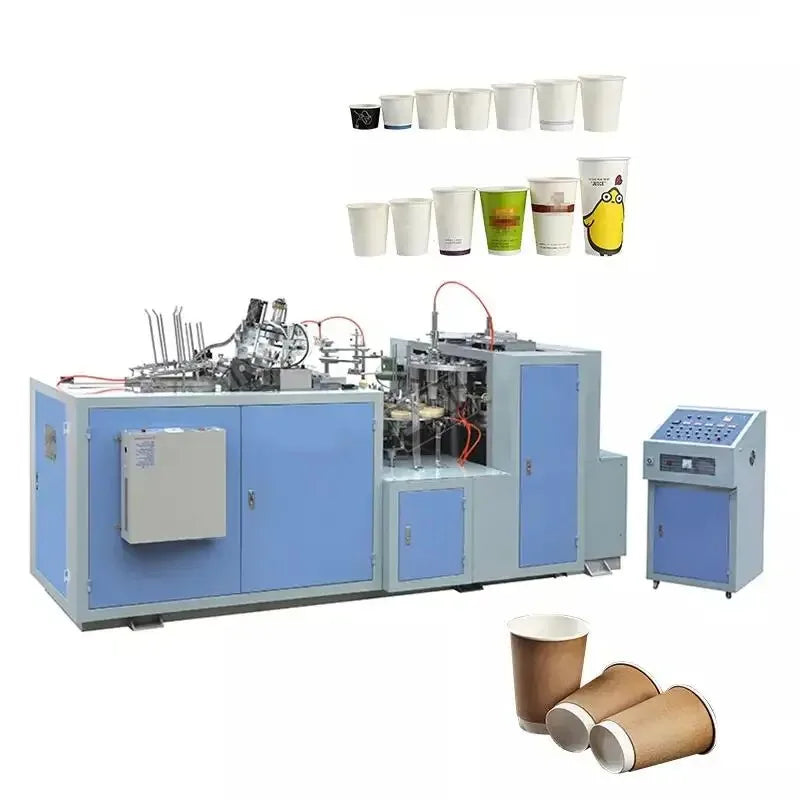

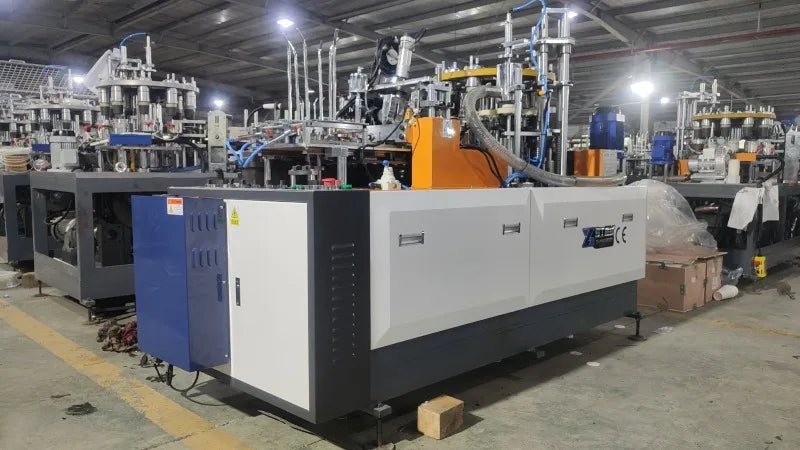

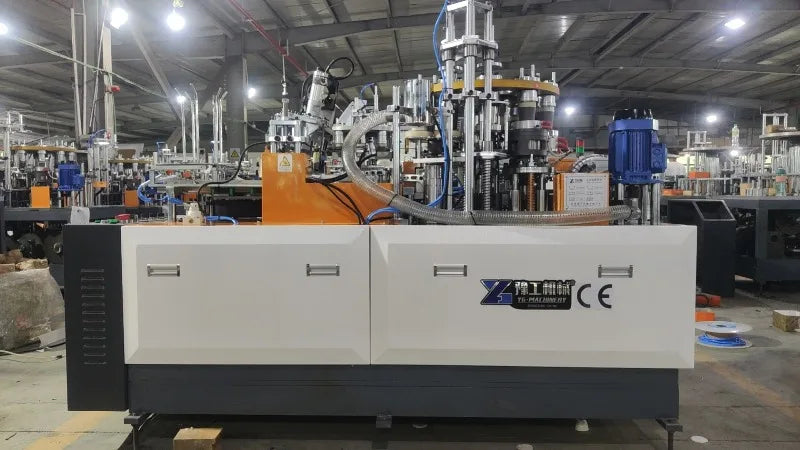

YG-90 PAPER CUP MACHINE - 100 Cups/min - CE Certified Industrial

🌈 Make Homes Colorful Again

The YG-90 is a fully automatic paper cup forming machine built for small and medium-scale food packaging operations. With a production speed of 90–120 cups per minute and compatibility with cup sizes from 60mm to 180mm diameter, it handles everything from espresso shots to large takeaway drinks — all with single or double PE-coated paper stock.

CE certified and equipped with a PLC control system, the YG-90 runs on standard 380V/50Hz industrial power at just 10kW total consumption. At 1,950 kg and a footprint of 900×900×1,760mm, it's compact enough for a dedicated production room yet powerful enough to supply a busy food service or packaging line around the clock.

SPECIFICATIONS

Producing Capacity: 90–120 pcs/min

Cup Size: 60mm–115mm / 50mm–85mm / 65mm–180mm

Total Power: 380V/50Hz, 10kW

Air Source: 0.4 m³/h

Applicable Base Paper: 190–350g (single or double PE coating)

Weight: 1,950 kg

Main Size: 900 × 900 × 1,760 mm

Certification: CE

Warranty: 2 years (core components: 3 years)

Core Components: PLC, Engine, Motor, Bearing, Gearbox

Model: YG-90
