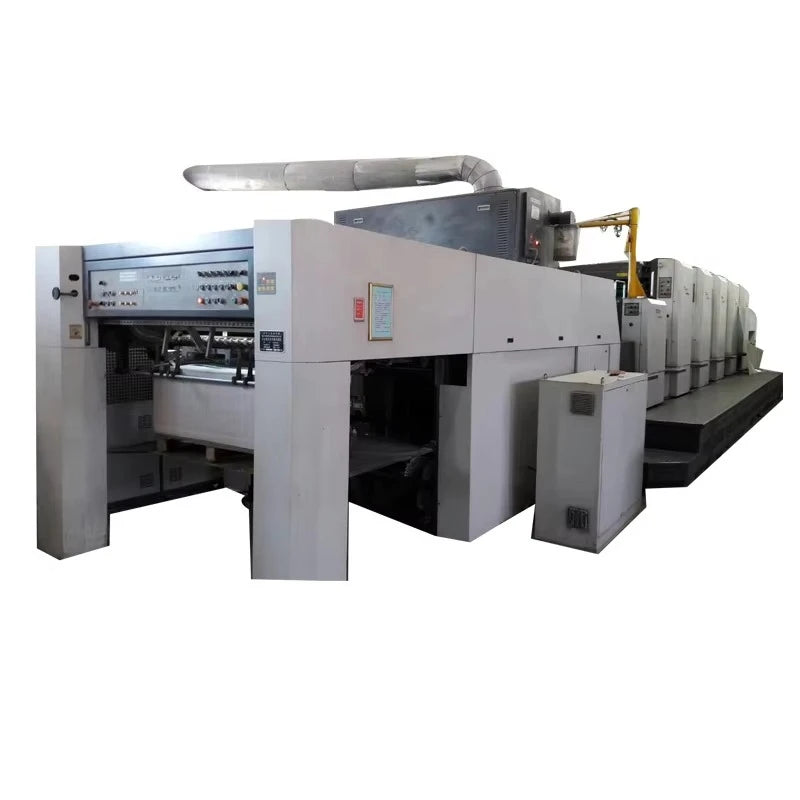

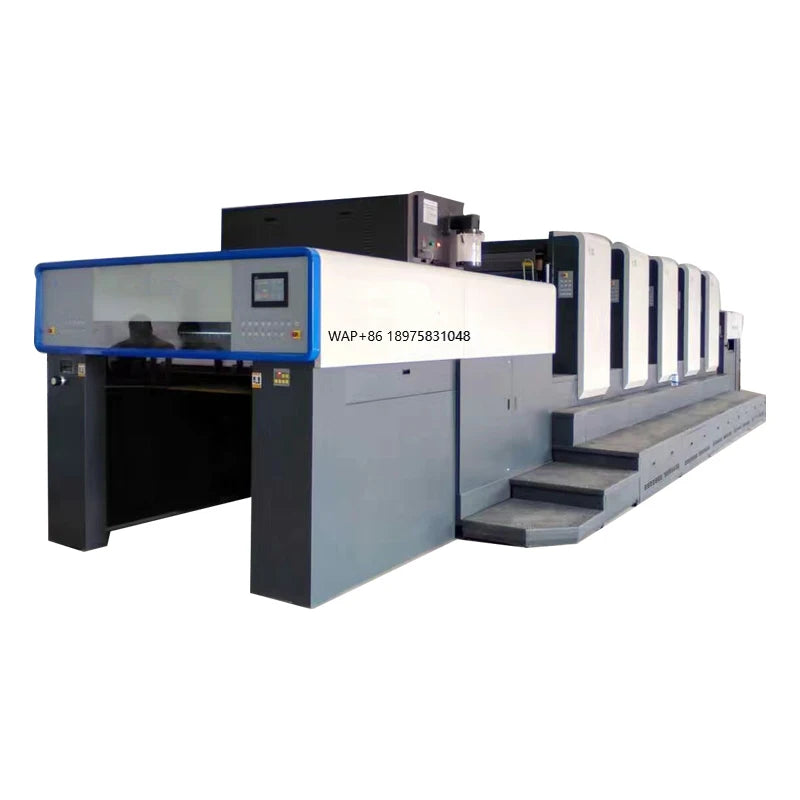

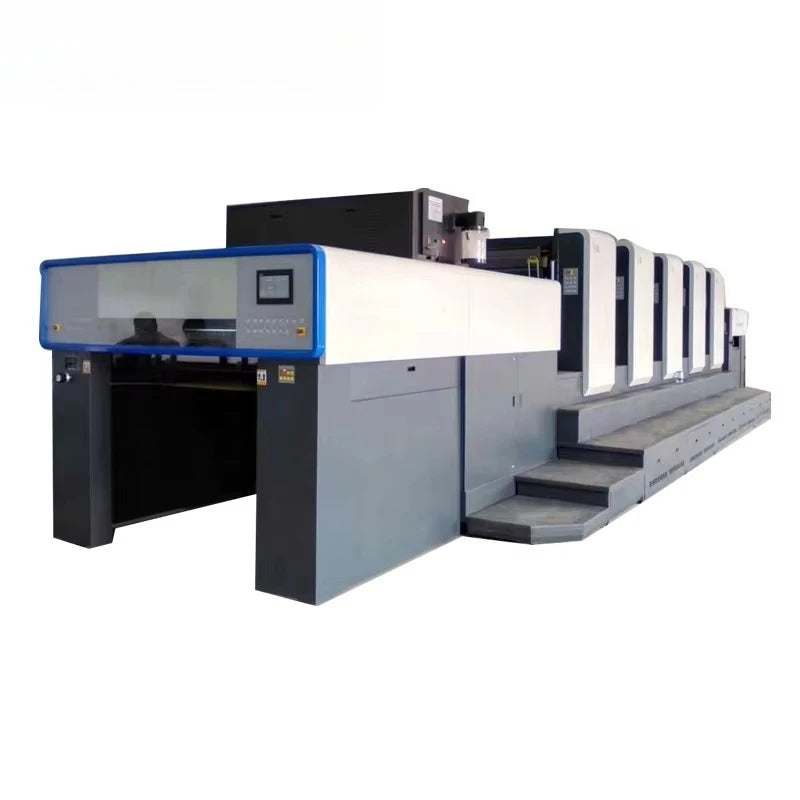

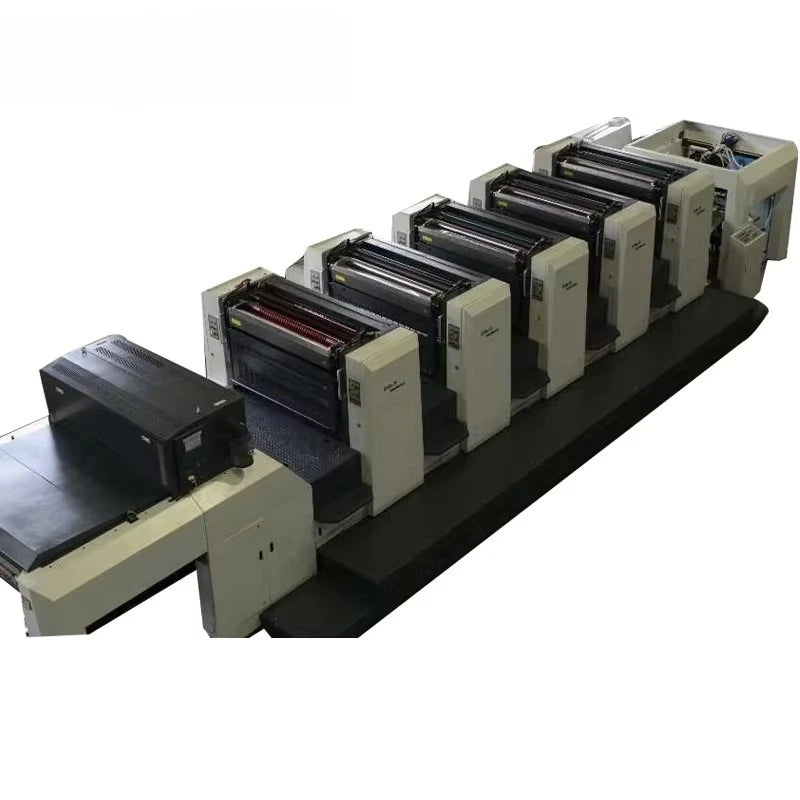

The JECHIM XH740 is a 4-color sheet-fed offset press built for high-volume commercial print shops — flyers, cards, bills, catalogues. At 12,000 sheets per hour with a max sheet size of 520×740mm and a print area of 510×730mm, it handles paper weights from 28 to 250g/m² with a feeder pile height of 930mm and delivery pile of 420mm.

Factory-direct from Shandong with a 1-year core component warranty and full inspection report provided. Shipping by sea; contact the supplier for exact freight and configuration pricing before ordering — the listed price is a deposit/reference only.

SPECIFICATIONS

Model: XH740 (also available: XH660)

Colors: 4

Speed: 12,000 sph

Max Sheet: 520×740mm

Min Sheet: 273×393mm

Max Print Area: 510×730mm

Sheet Thickness: 0.04–0.45mm

Paper Weight: 28–250 g/m²

Plate Size: 625×755×0.3mm

Blanket Size: 680×755×1.9mm

Feeder Pile Height: 930mm

Delivery Pile Height: 420mm

Dimensions: 235×204×177cm

Motor Power: 6.82kW

Gross Weight: ~3,700kg

Voltage: 380V

Warranty: 1 Year
