3018 Pro CNC Router - 500W Spindle - Compact Workshop

SPECIFICATIONS

• Model: CNC3018pro / 3018 Pro CNC router machine kit.
• Condition: new.
• Construction: all-metal, according to the original supplier title.
• Axes: 3; limit switches and emergency stop described in the original title.
• Working area: 300×180×80mm / supplier-listed 11.8×7.1×3.15 inches.
• Worktop: 300×180mm / supplier-listed 11.81×7.08 inches.
• Spindle power: 500W.
• Spindle speed: approximately 12,000rpm.
• Stepper motors: NEMA 17.
• Power supply: 48V DC / 10.5A; mains input requirements are not specified in the text.
• Supplier-listed repeatability: ±0.025mm; test conditions not supplied.
• Controller: GRBL; control-board compatibility listed as GRBL 1.1h.

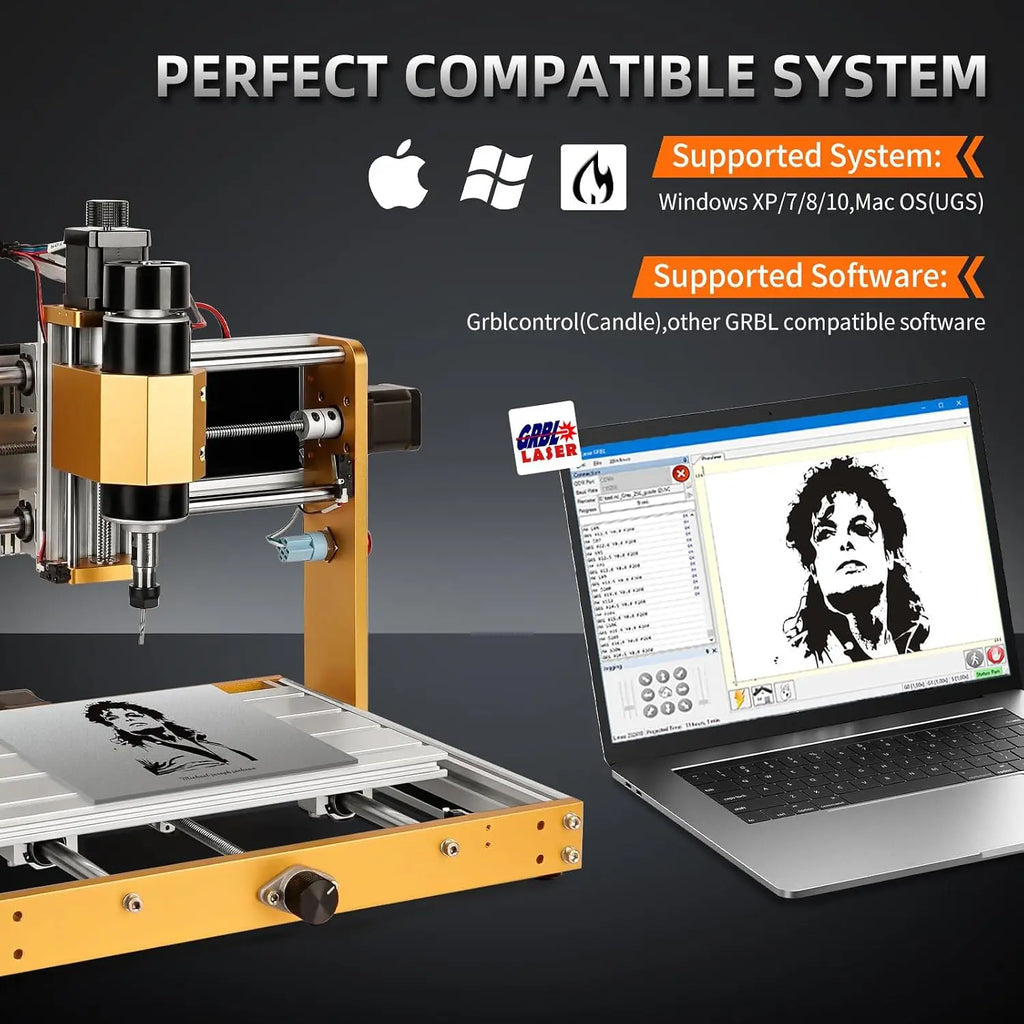

• Supplier-listed operating systems: Windows XP/7/8/10, Linux and Mac OS. Confirm software and driver compatibility with your system.
• Offline controller included.
• Collet: ER11, 1/8-inch.
• High-concerned chemical: none declared.
• Five selectable variants are all labelled Machine Kit and differ only by dispatch location; no separate spindle-power option is present.

Package Contents

• 1 × CNC router kit.
• 1 × 500W spindle.
• 1 × Z-probe.
• 1 × ER11 1/8-inch collet.

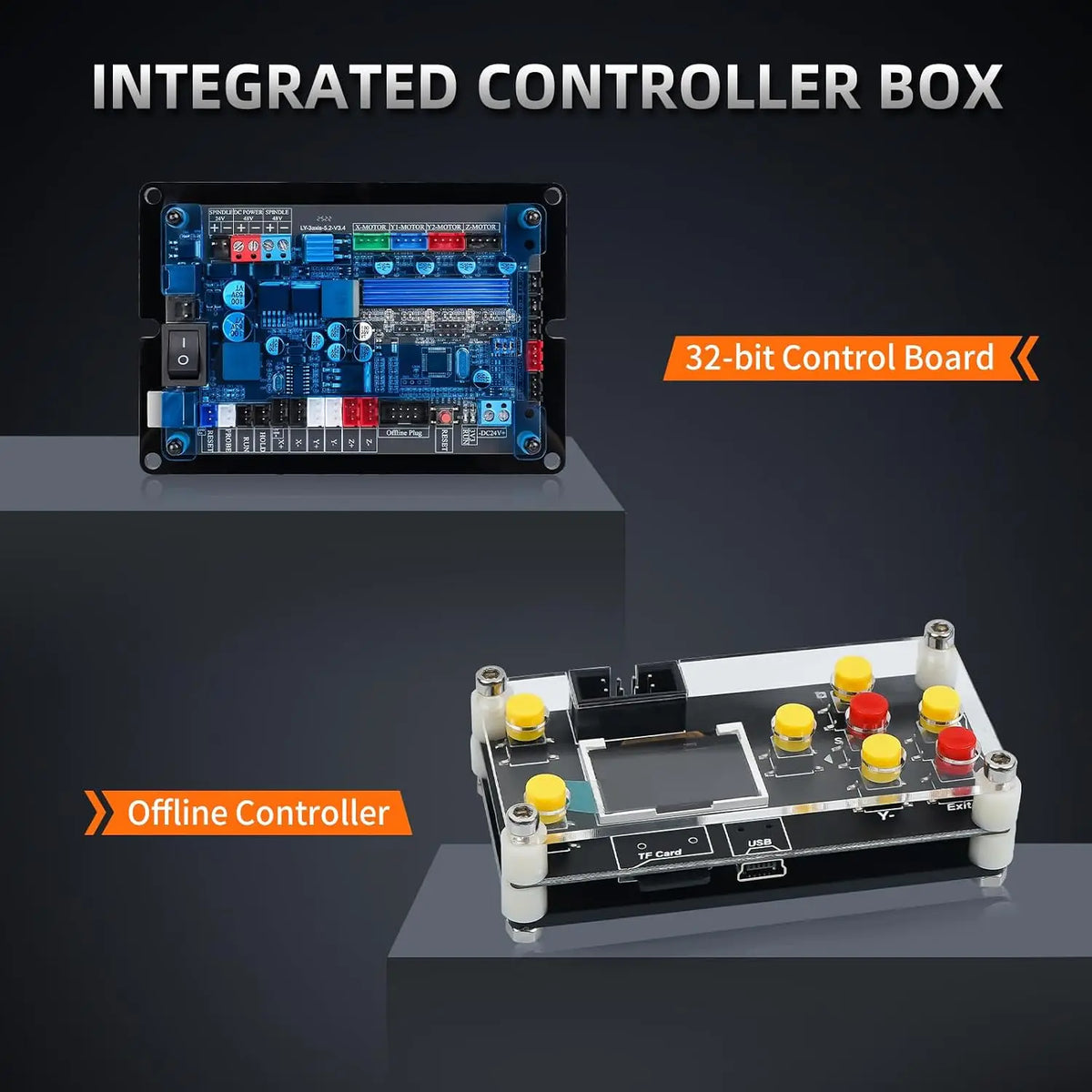

• 1 × control board and offline controller.
• 1 × switching power supply.
• 1 × user manual.
• 1 × USB cable and USB drive, as grouped by the supplier.
• 1 × US-standard power cord, according to the package list. Confirm the cord supplied with your selected variant.
• Wrenches and screws, quantities unspecified.
• 1 × screw positioning module.
• 4 × mini hold-down clamp kits.

Overall machine dimensions, weight, assembly requirements and supported cutting materials are not specified in the text. Confirm these before purchase and follow the supplied manual for assembly, guarding, workholding and operation.
