SPECIFICATIONS

After Warranty Service: Online Technical Support

After-sales Service Provided: Engineers

Application: Rice, Corn, Wheat, Paddy

Brand Name: Yugong (YG)

Certification: CE

Condition: New

Core Components: Gear, Gearbox, Bearing, Engine, HST

Cutting width: 2750mm

Driven Type: Gear Drive

Engine: Weichai

Engine Model: WP4.6NG190E301

Engine type: Vertical, straight-line, water-cooled, four-stroke, air-to-air cooled, high-pressure common rail

Engine cylinders: 4

Engine power: 140kW

Engine rotate speed: 2200r/min

Power type: 190hp

MOQ: 1 set

Machinery Test Report: Provided

Minimum ground clearance: 290mm

Number of rows: 3

Row distance: 2500-2750mm

Dimension (L×W×H): 6550×3050×3550mm

Weight: 5400kg

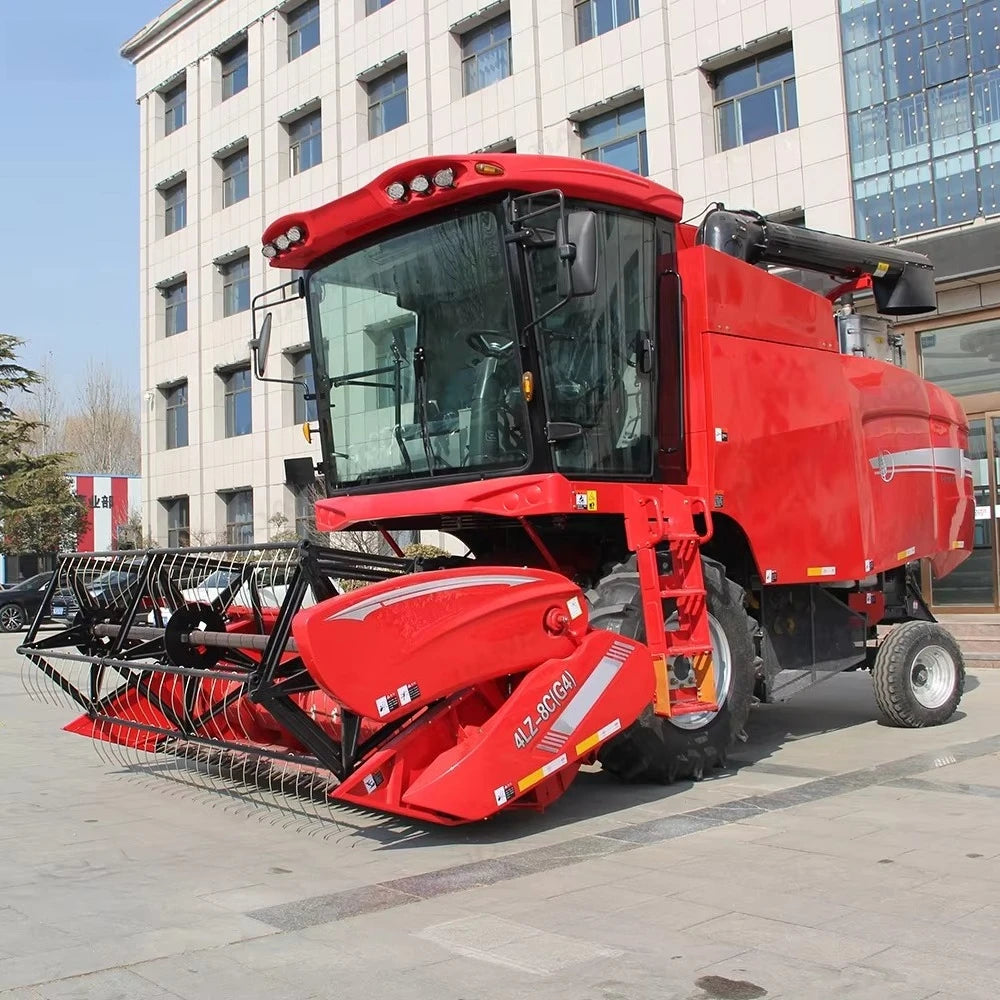

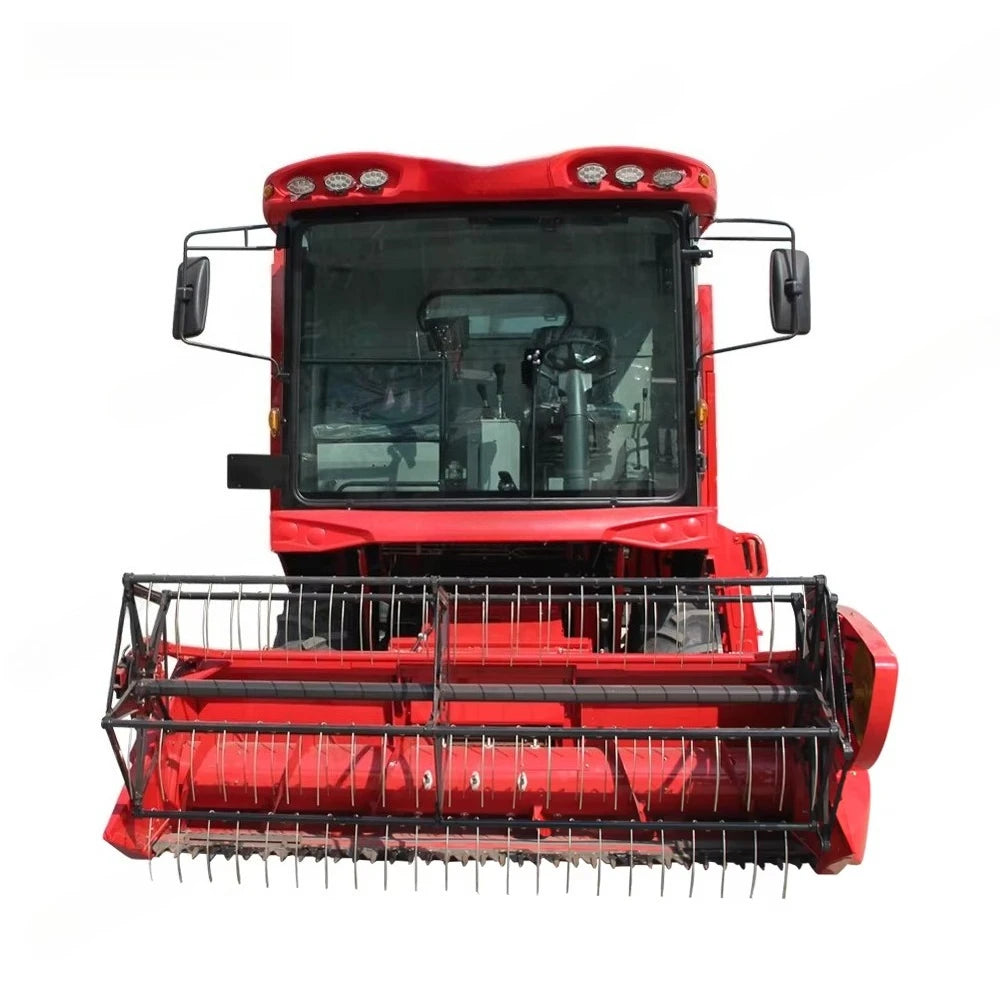

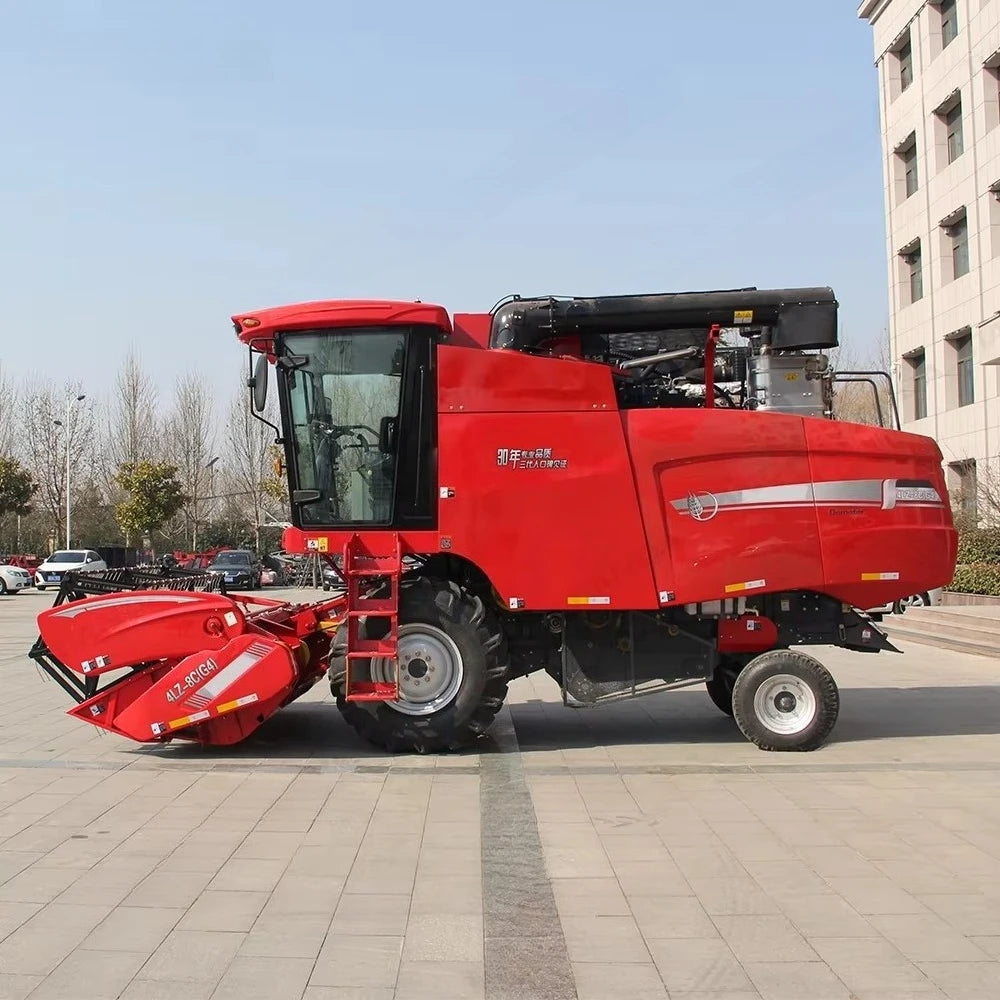

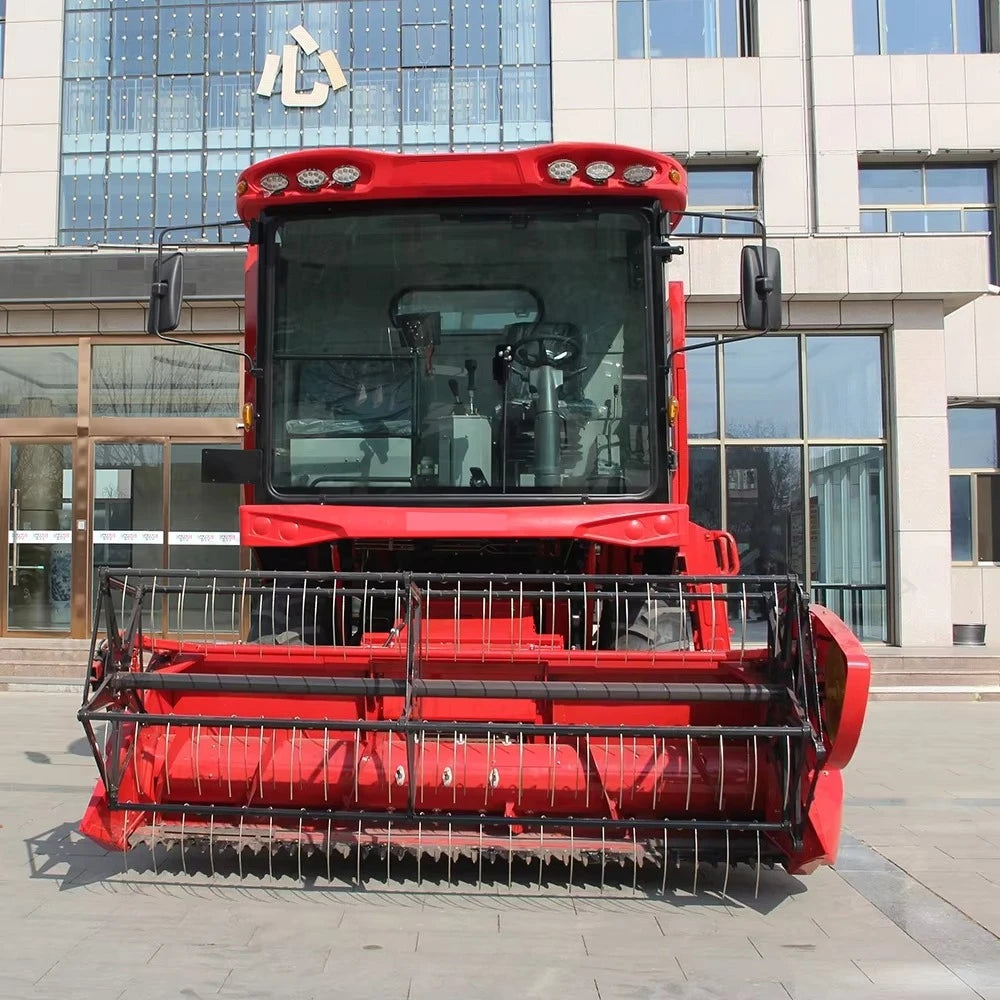

Machine type: 4LZ-8C self-propelled grain combine harvester

Type: Combine Harvester

Tractor power: 190-260HP

Usage: Grain Harvester

Video outgoing-inspection: Provided

Warranty: 1 Year

Working width: 2800mm

Working efficiency: 1-9km/h

4LZ-8C DESIGN SPECIFICATIONS

Model: 4LZ-8C self-propelled grain combine harvester

Engine: Weichai

Engine model: WP4.6NG190E301

Engine type: Vertical, straight-line, water-cooled, four-stroke, air-to-air cooled, high-pressure common rail

Engine cylinders: 4

Engine power: 140kW

Engine rotate speed: 2200r/min

Dimension: 6550×3050×3550mm

Total weight: 5400kg

Cutting width: 2750mm

Minimum ground clearance: 290mm

Cutter type: GBⅡ

Feeding: 8kg/s

Working speed: 1.0-9.0km/h

Working productivity: 0.4-1.0hm²/h

Fuel consumption: ≤35kg/hm²

Header cross auger type: Screw, grilled tooth type

Reel type: Spring tine

Reel diameter: Φ1000mm

Reel bat: 5

Threshing mechanism: Longitudinal axial flow drum type

Number of threshing drums: 1

Main threshing drum type: Longitudinal axial flow, rod tooth type

Main threshing drum size: Φ620×2690mm

Concave screen type: Grid style

Repeat threshing method: Miscellaneous back drum

Fan type: Centrifugation style

Number of fans: 1

Drive model: 4×2

Transmission mechanism type: Mechanical

Drive axle type: Front: Mechanical + Hydraulic

Guide tire specifications: 10/75-15.3

Driving tire specifications: 15-24

Guide wheel tread: 1850mm

Wheel base: 2720mm

Cabin type: General
