SPECIFICATIONS

Accessories: Customizable

Applicable Industries: HOME USE

Brand Name: LANDWARD

Certification: CE, EPA, ISO

Color: Customizable

Condition: New

Core Components: ENGINE

Engine Brand: KUBOTA

External dimensions: 3450*1150*2230mm

High-concerned chemical: none

Key Selling Points: Multifunctional

Logo: Customizable

Machinery Test Report: Provided

Operating Weight: 2050KG

Optional: OEM ODM

Power: 18.5kw

Rated Power: 25HP

Transportation: Sea Freight LCL, FCL

Transportation method: DDP/EXW/FOB/CFR/CIF

Type: Crawler Tractor

Video outgoing-inspection: Provided

Warranty: 1.5 Years

Warranty of Core Components: 1.5 Years

XT20 Engine Model: KUBOTA D902 / LL385BT

Year: 2026

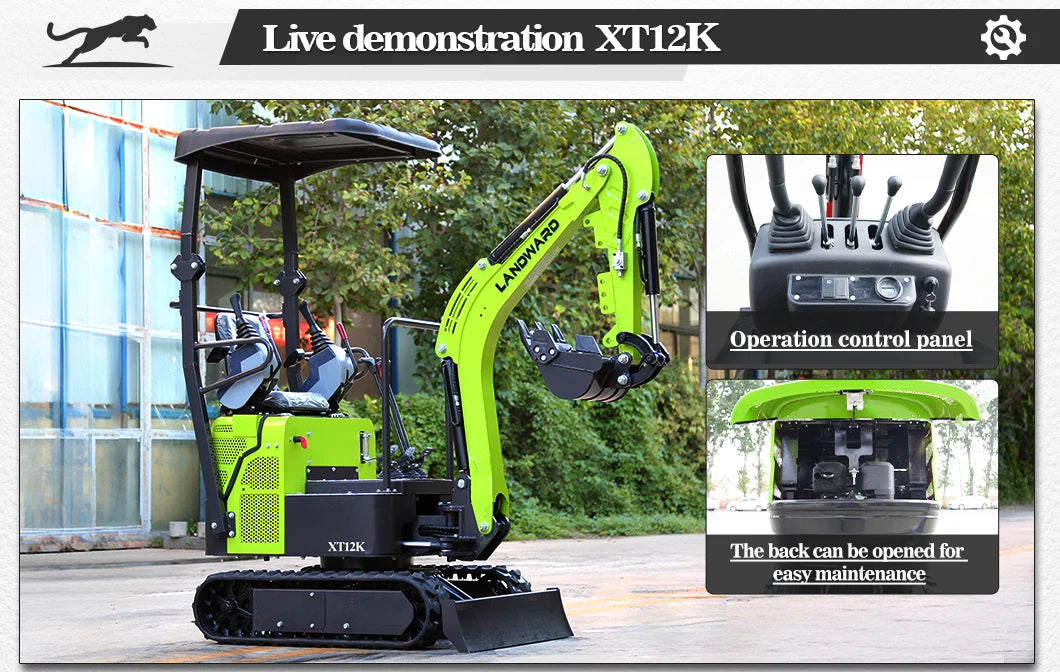

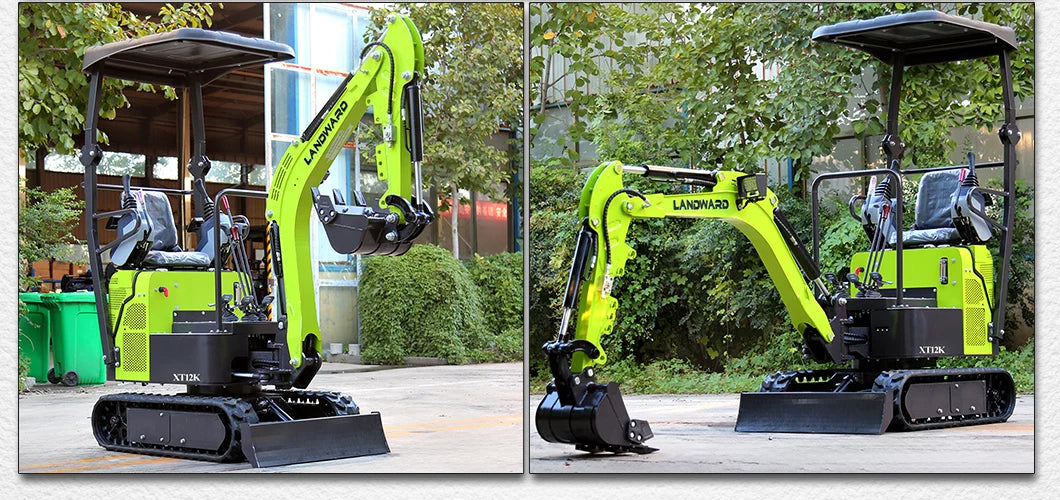

XT12K MODEL SPECIFICATIONS

Operating Weight: 1180KG

Bucket capacity: 0.02m³

Engine Model: Koop 192

Max. Climbing degree: 40%

Rated power: 7KW/3000rpm

Travel speed: 0-2.5 km/h

Max. Dumping height: 1900mm

Max. Digging height: 2550mm

Max. Digging depth: 1800mm

Slewing speed: 10rpm

Overall machine dimensions: 3010*850*2250mm

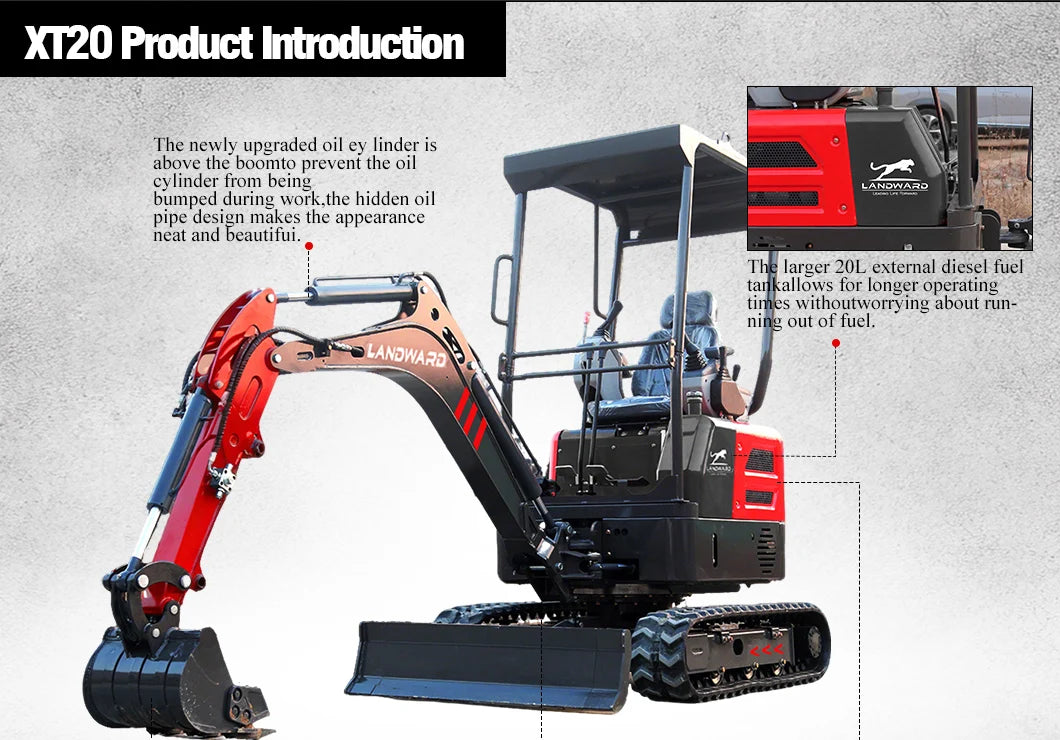

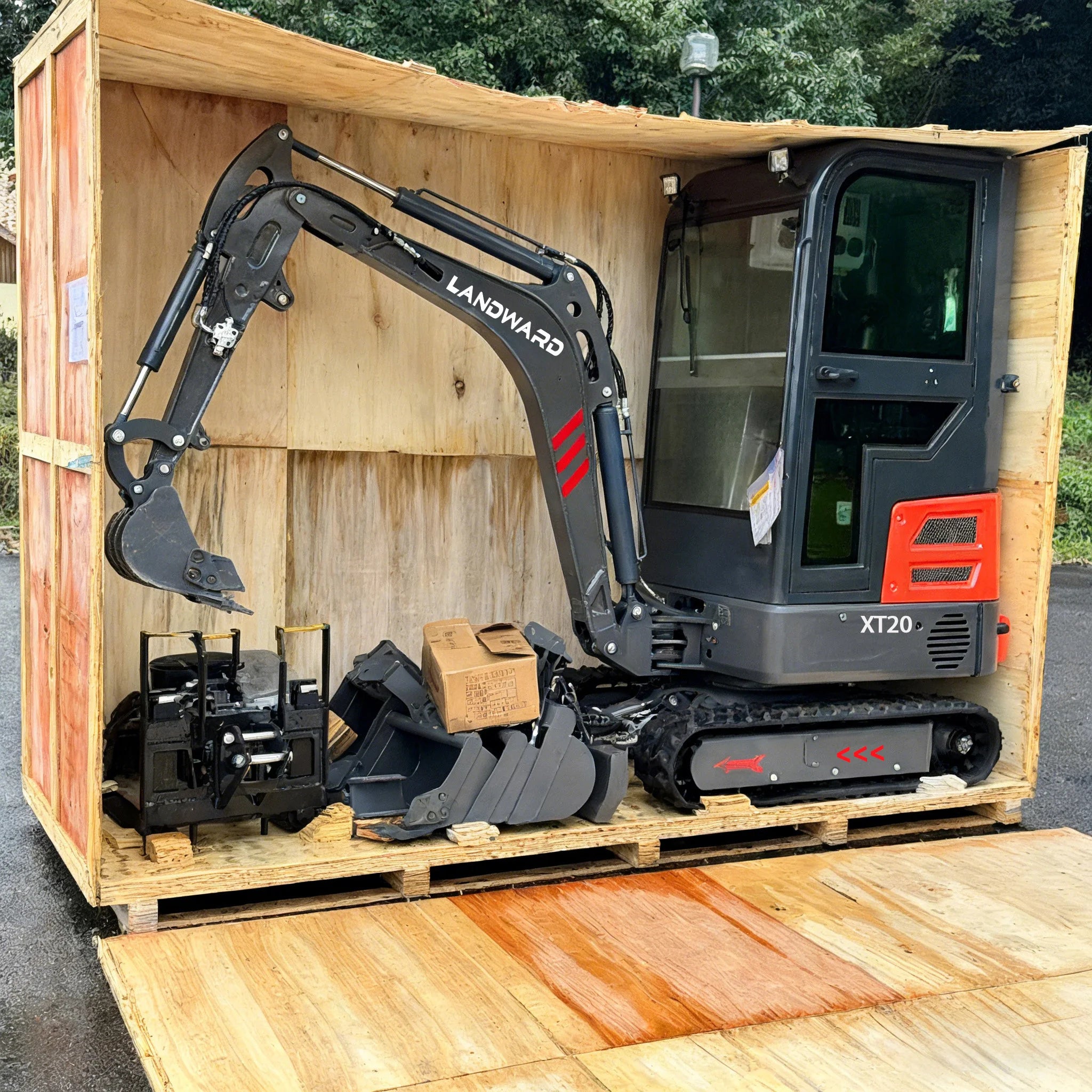

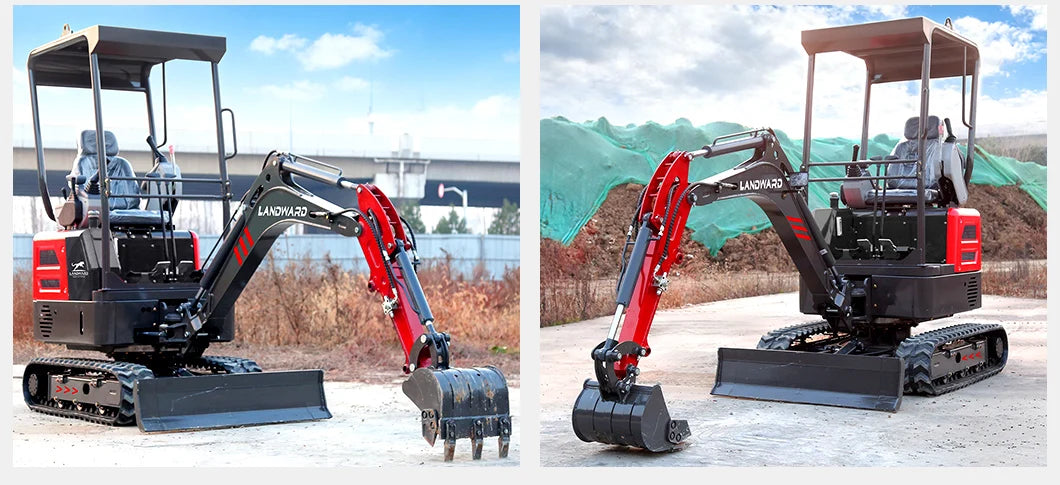

XT20 MODEL SPECIFICATIONS

Engine model: KUBOTA D902 / LL385BT

Engine type: Three-cylinder direct injection

Displacement: 0.898L / 1.617L

Rated power: 11.8/2300kW/rpm / 18.8/2400kW/rpm

Hydraulic system: Gear Pump/Variable Piston Pump / Gear Pump

Rated working flow: 27.6/41.4L/min / 28.8L/min

Arm digging force: 9.5kN

Bucket digging force: 16kN

Travel speed: 2.2-4.3km/h

Traction force: 18kN

Gradability: 30°

Max. rotation speed: 9.5r/min

Brake type: Mechanical brake

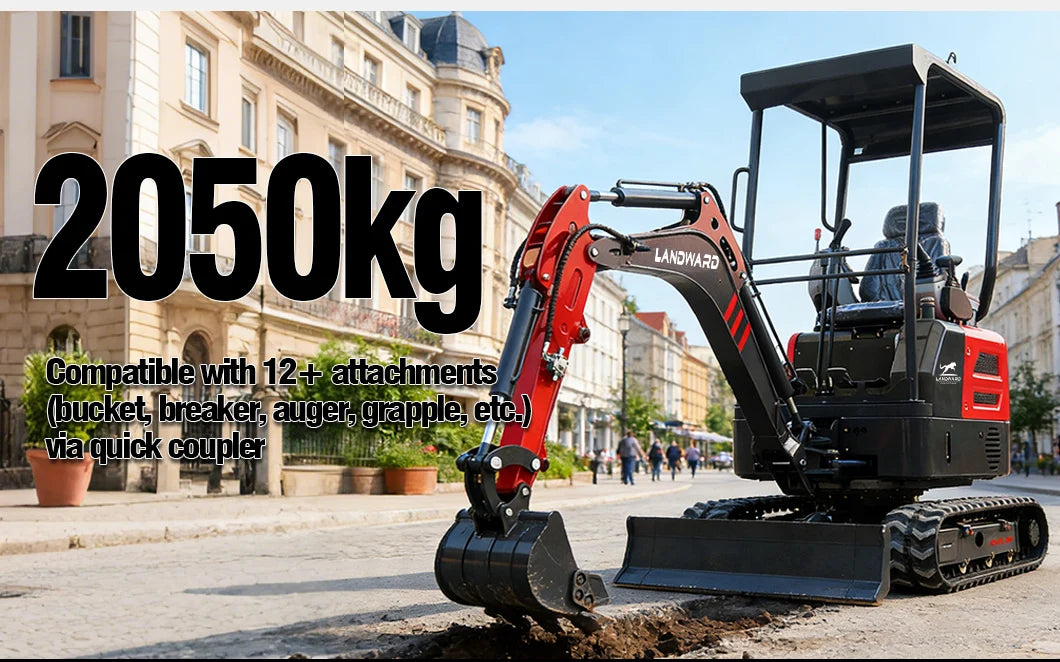

Machine weight: 2050kg

Bucket capacity: 0.025m³

Fuel tank capacity: 20L

Cooling system: 5L

Engine oil volume: 3.7L / 5L

Hydraulic oil tank capacity: 15L

Overall length: 3450mm

Ground length (transportation): 1420mm

Overall height (to top of boom): 1250mm

Overall width: 1150mm

Overall height (to top of cab): 2230mm

Counterweight ground clearance: 450mm

Minimum ground clearance: 190mm

Tail swing radius: 850mm

Wheelbase: 1100mm

Standard track shoe width: 230mm

Bucket width: 400mm

RS boom right swing: 49.7°

LS boom left swing: 62.7°

Max. digging height: 2550mm

Max. dumping height: 1800mm

Max. digging depth: 2100mm

Max. digging radius on ground: 3530mm

Min. swing radius of working device: 1750mm

Max. lifting height of bulldozer: 170mm

Max. cutting depth of bulldozer: 220mm
