SPECIFICATIONS

Brand: Yugong

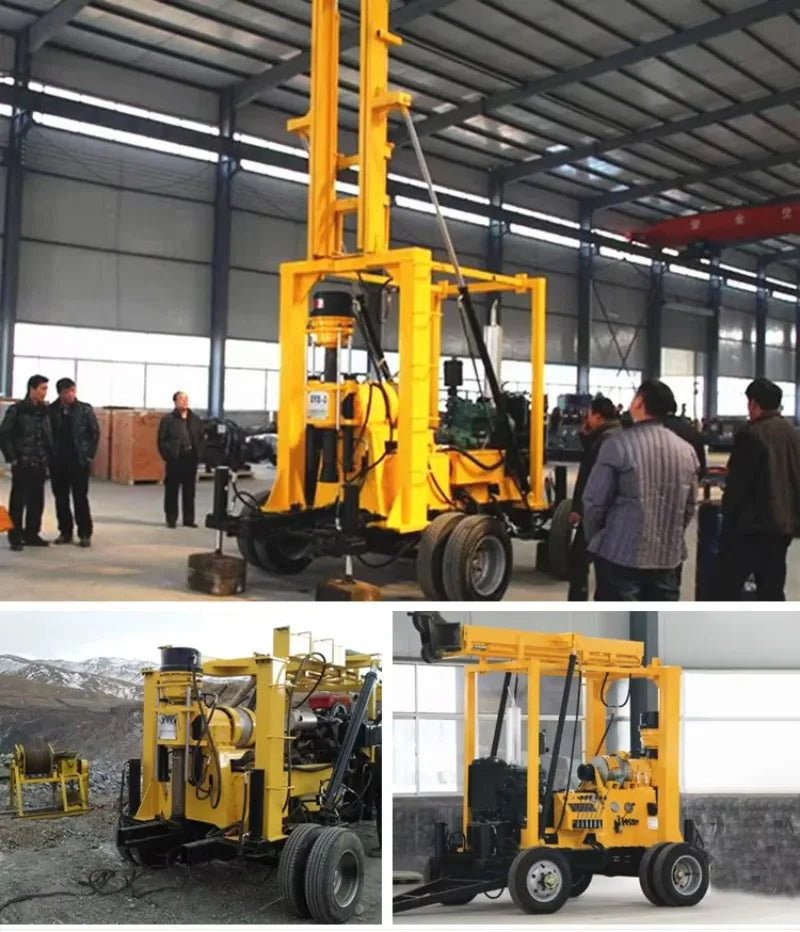

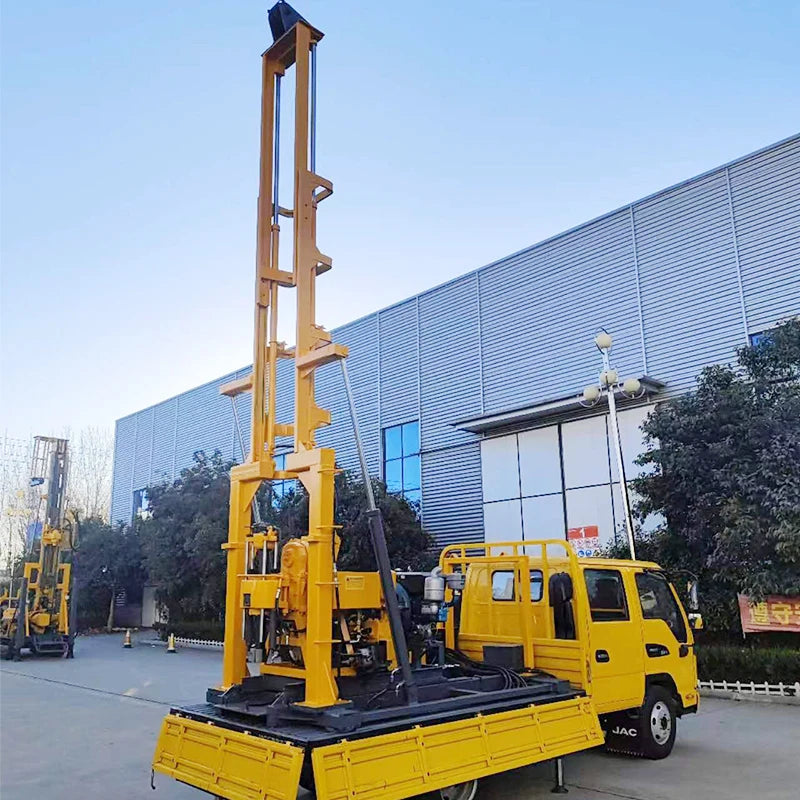

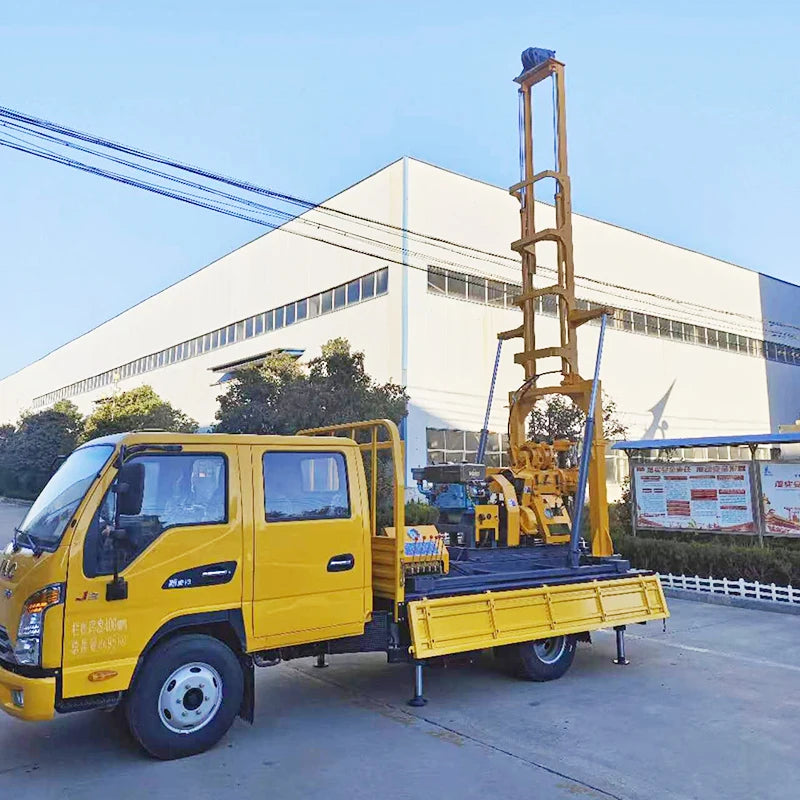

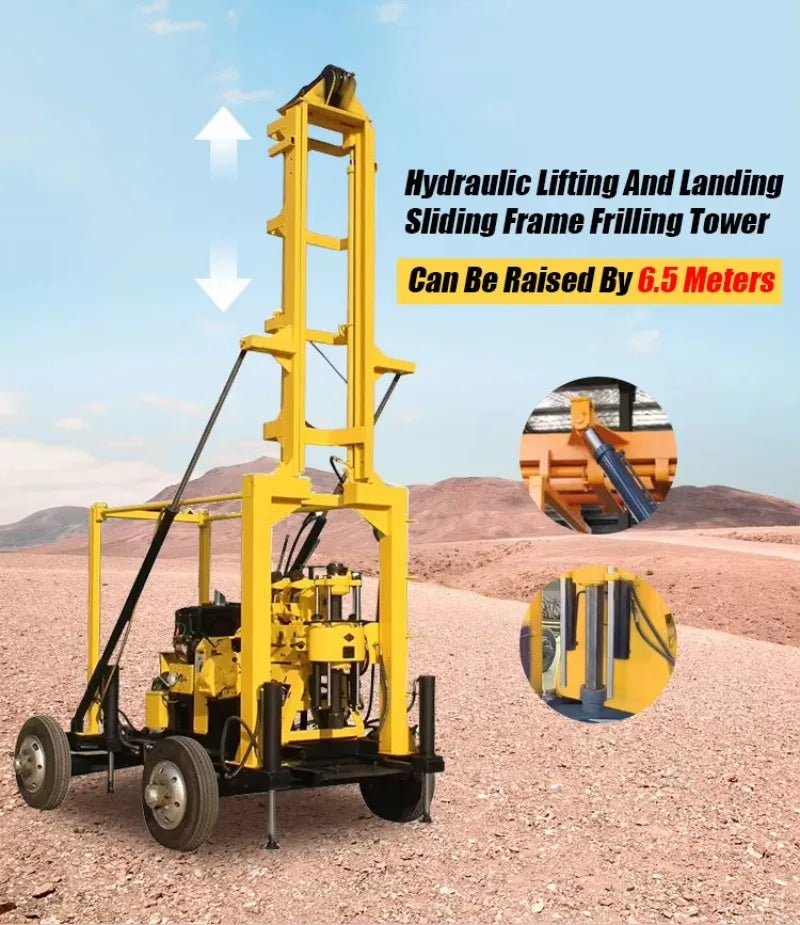

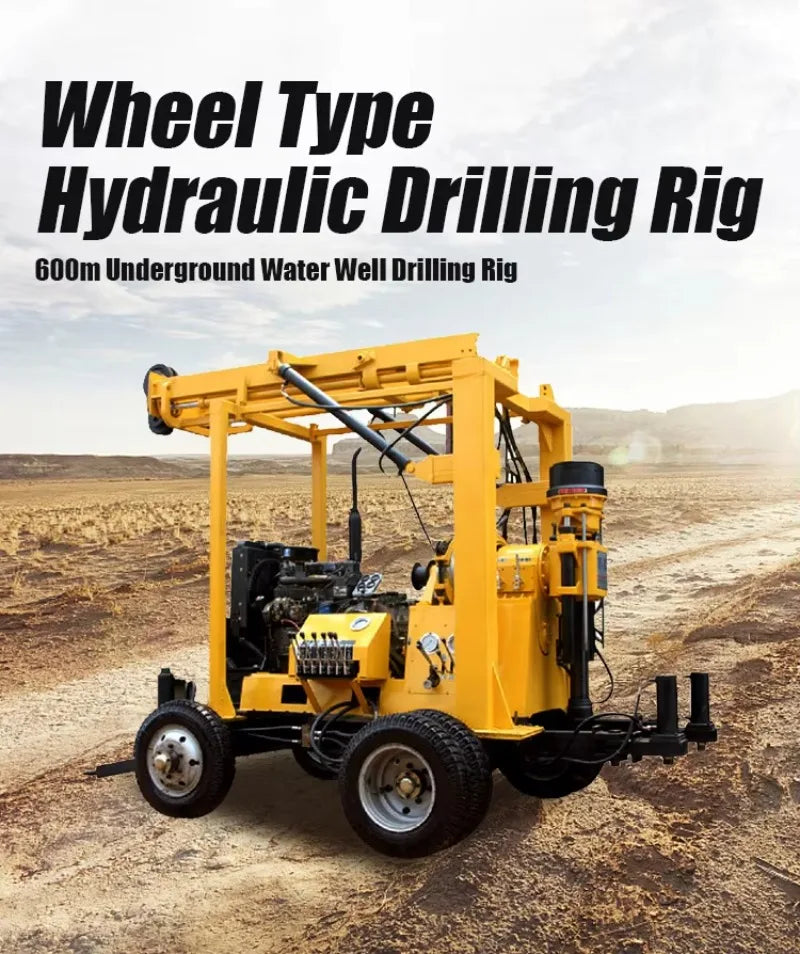

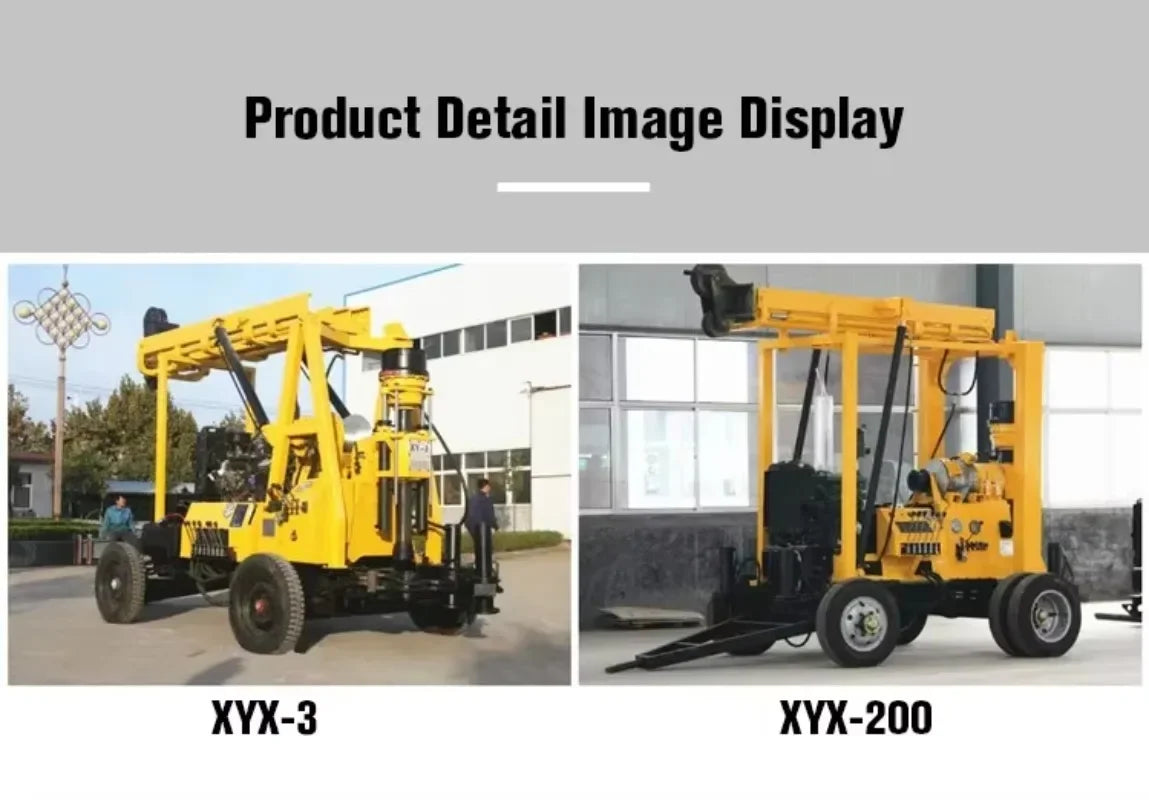

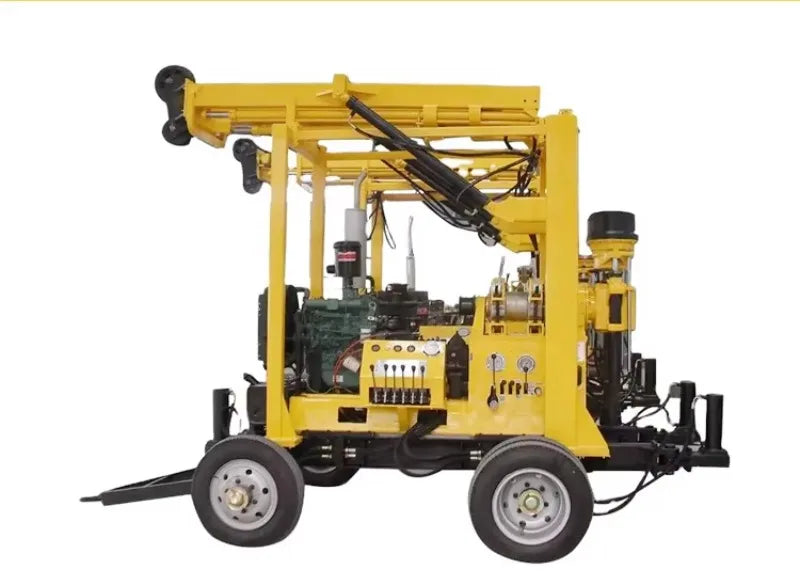

Type: Portable hydraulic core drilling rig

Application: Water wells, rock drilling and rock or soil sampling

Certification: CE

Drilling method: Top-drive hydraulic rotary drilling

Maximum drilling depth: 600 m

Drilling diameter: 75–325 mm listed

Drill pipe diameter: 42 / 50 / 60 / 76 mm

Drill rod length: 4.2 m

Drilling angle: 90°–65°

Spindle forward speed: 30–1,050 rpm

Spindle reverse speed: 29–137 rpm

Spindle stroke: 560 mm

Spindle lifting capacity: 60 kN

Diesel engine: 51 HP

Electric motor: 22 kW

Power options: 22 / 28 / 35 HP listed

Mud pump: BW-200 triplex pump, 200 L/min displacement

Mud pump working pressure: 4–6 MPa

Walking speed: 0–2.5 km/h

Overall dimensions: 3,900 × 2,250 × 2,150 mm

Weight: 2,300 kg listed

Condition: New

Warranty: 1 year

Machinery test report: Provided
