Wheel Loader - Hydraulic Diesel - Farm & Construction
Wheel Loader - Hydraulic Diesel - Farm & Construction
SPECIFICATIONS
Accessories: Customizable
Applicable Industries: HOME USE
Brand Name: LANDWARD
Certification: CE,EPA,ISO
Color: Customizable
Condition: New
Core Components: ENGINE
Engine Brand: Other
Engine customizable: Kubota 1105 /Perkins
High-concerned chemical: none
Key Selling Points: Multifunctional
Logo: Customizable
Machinery Test Report: Provided
Operating weight: 2570 kg
Optional: OEM ODM
Origin: Mainland China
Overall height: 2200mm
Overall length: 3000mm
Overall width: 1500mm
Place Of Origin: China
Power(W): 17KW
Rated Power: 24HP
Showroom Location: China Mainland
Transportation: Sea Freight LCL, FCL
Travel speed: 15 km/h
Type: Wheel Tractor
Video outgoing-inspection: Provided
Warranty: 1.5 Years
Warranty of Core Components: 1.5 Years
Way Of Trade: FOB CIF
Year: 2026
Welcome toLANDWARD official store
we are a professional manufacturer of Loader
We support OEM & ODM service for any clients, even you only need 1 pcs.
Order from this page to upgrade to our 👑VIP👑service level.
We believe that giving back to our customers is not just about products, but also about a seamless partnership.
Welcome you from faraway come to China and visit us. We will treat you at the most comfortable way and looking forward to doing business together with you.
All price is based on FOB Qingdao, China,
Please consult our sales for more details if you need other delivery solutions.

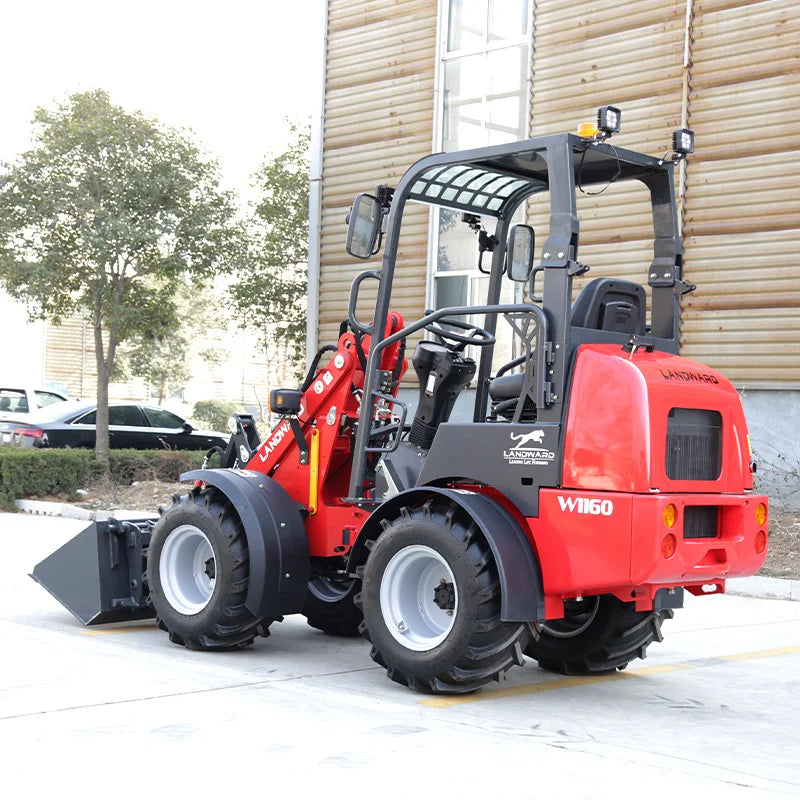

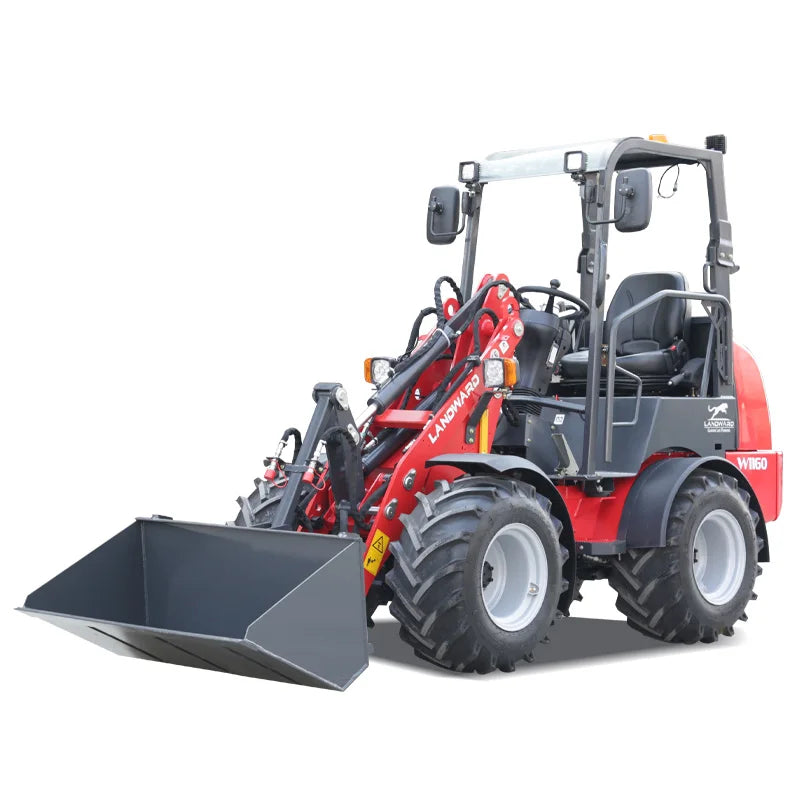

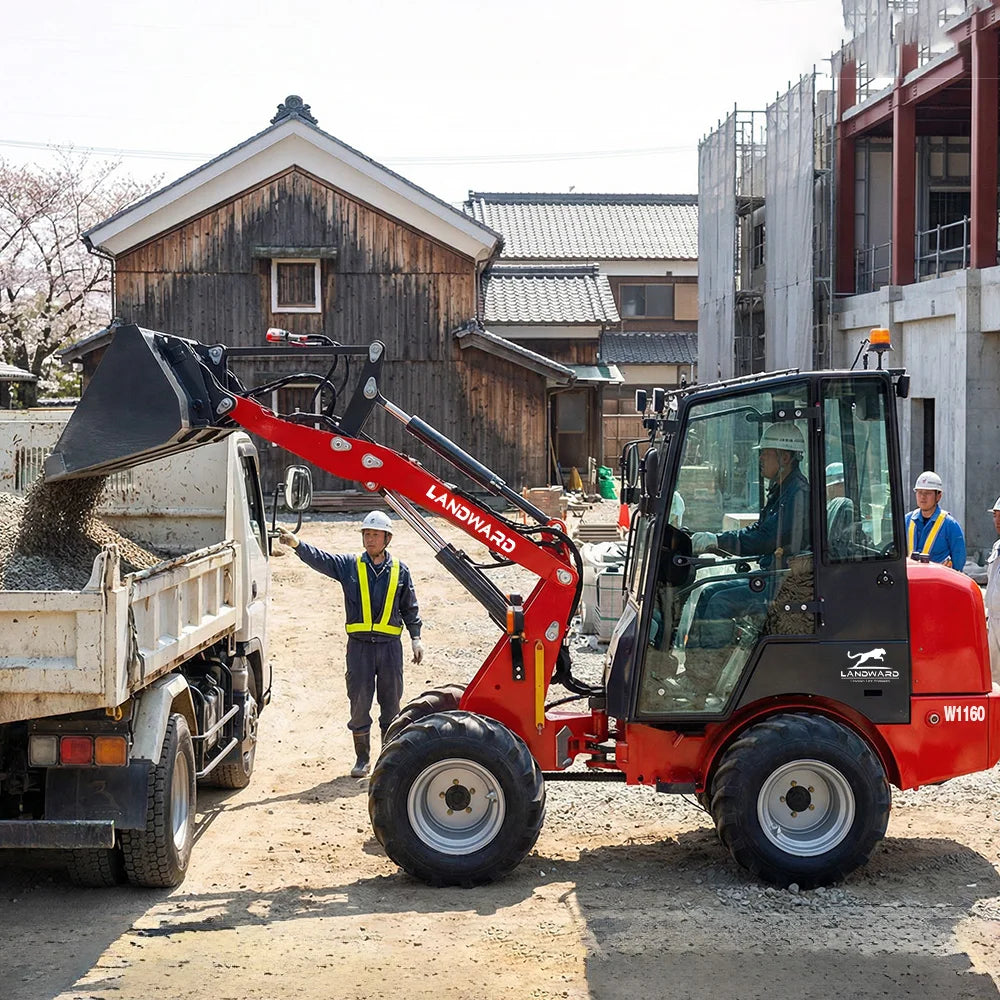

W1160 Diesel Loader | ||
Standard Configuration |
High Configuration |
|
Engine |
Kubota 1105 /Perkins |
Kubota 1105 /Perkins |
Power |
18.2Kw /18.4 Kw |
18.2Kw/18.4 Kw |
Pump（single） |
Rexroth plunger pump |
Rexroth plunger pump |
Hydraulic Motor |
Double（ZhenJiangdali） |
Single（Rexroth） |
Valve |
Haihong（Domestic） |
Walvoil（Italy） |
High - low speed |
Top speed：15 km/h |
Top speed：20 km/h（Electronic Control） |
Brake |
Inch function |
|
Electric handle |
Forward and Back buttons |
①Forward and Back buttons（Weidmann same style） |
Turn signal |
LED work lights |
LED work lights |
Seats |
Safety shut-off sensor（20s） |
|

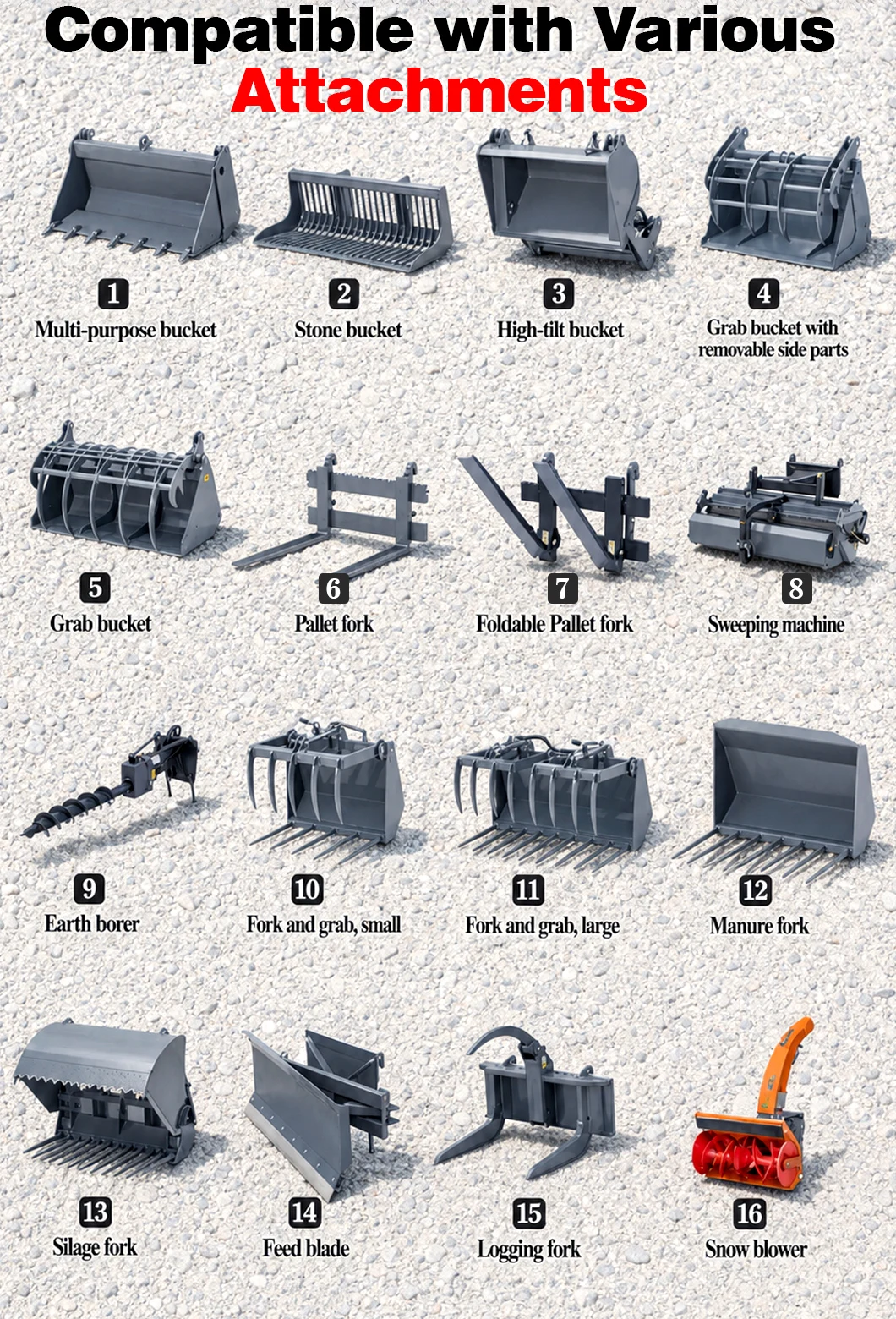

Accessories |
Quick coupler (EU hydraulic) |
Quick coupler (EU hydraulic) |
Tire |
10.0/75-15.3 |
|
Rated lifting capacity |
850-1250kg |
|
Hydraulic oil tank |
32L |
32L |
Fuel tank |
30L |
30L |
Traction |
15 kN |
15kN |
Machine weight |
2570 kg |
2570 kg |
Configuration |
Cab + Heater + Radio（Optional） |
|
Packing size |
3000*1500*2200mm |
|
Dear Buyerhis product is custom-made, and the price shown is not the final price. We offer a variety of delivery methods, including DDP, EXW, FOB, CFR, CIF. Freight needs to be calculated based on the delivery mode.We can customize the color, configuration, model, appearance, logo, engine type, and powertrain. The most important thing is that you need to communicate with our customer service to confirm the product parameters.Specific pricing varies depending on the country and custom requirements, please contact customer service. Orders not confirmed by customer service will not be shipped.

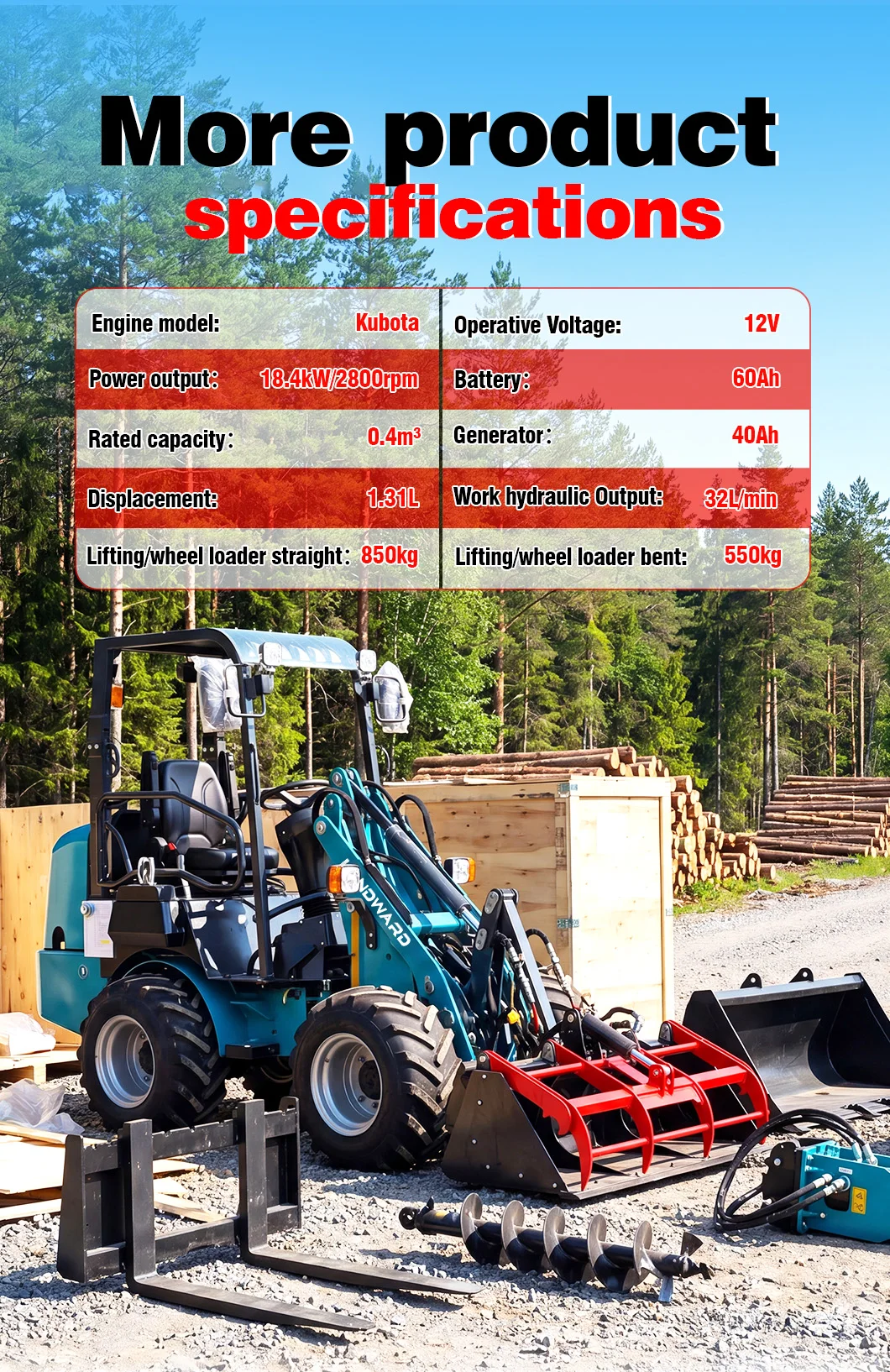

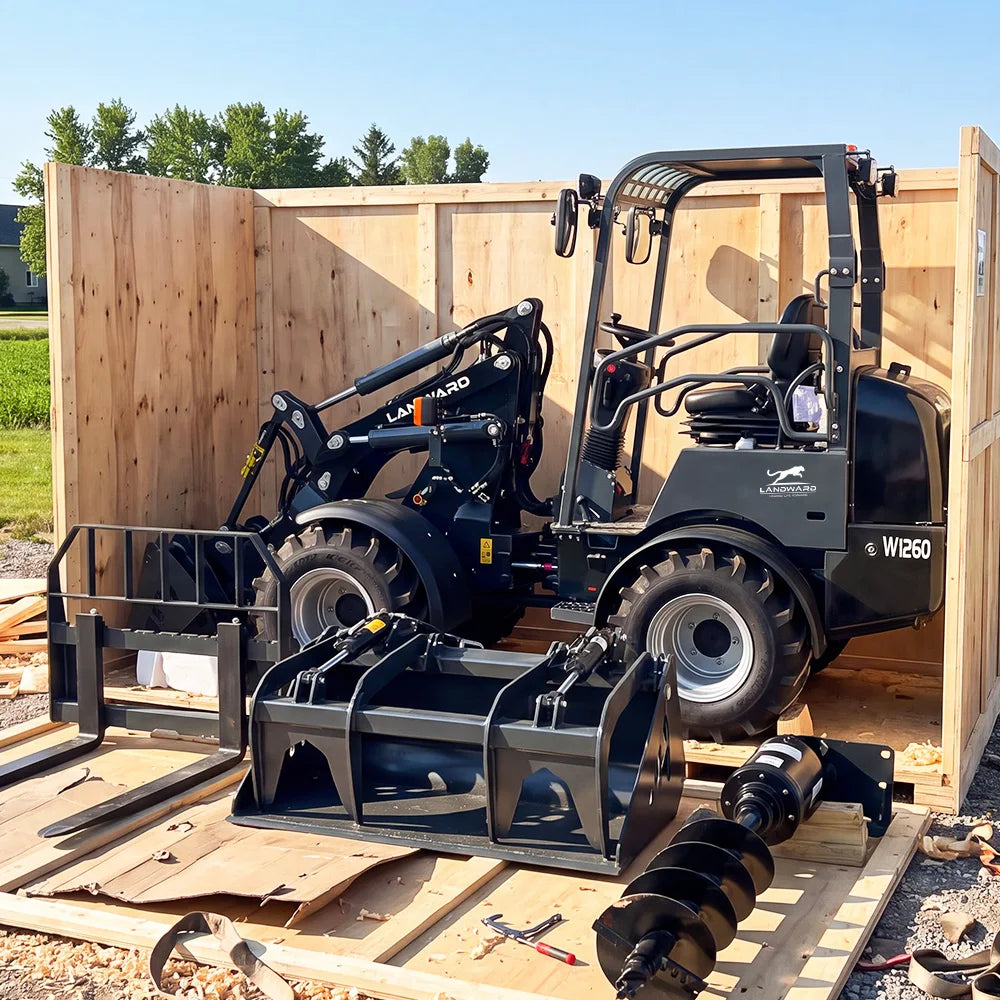

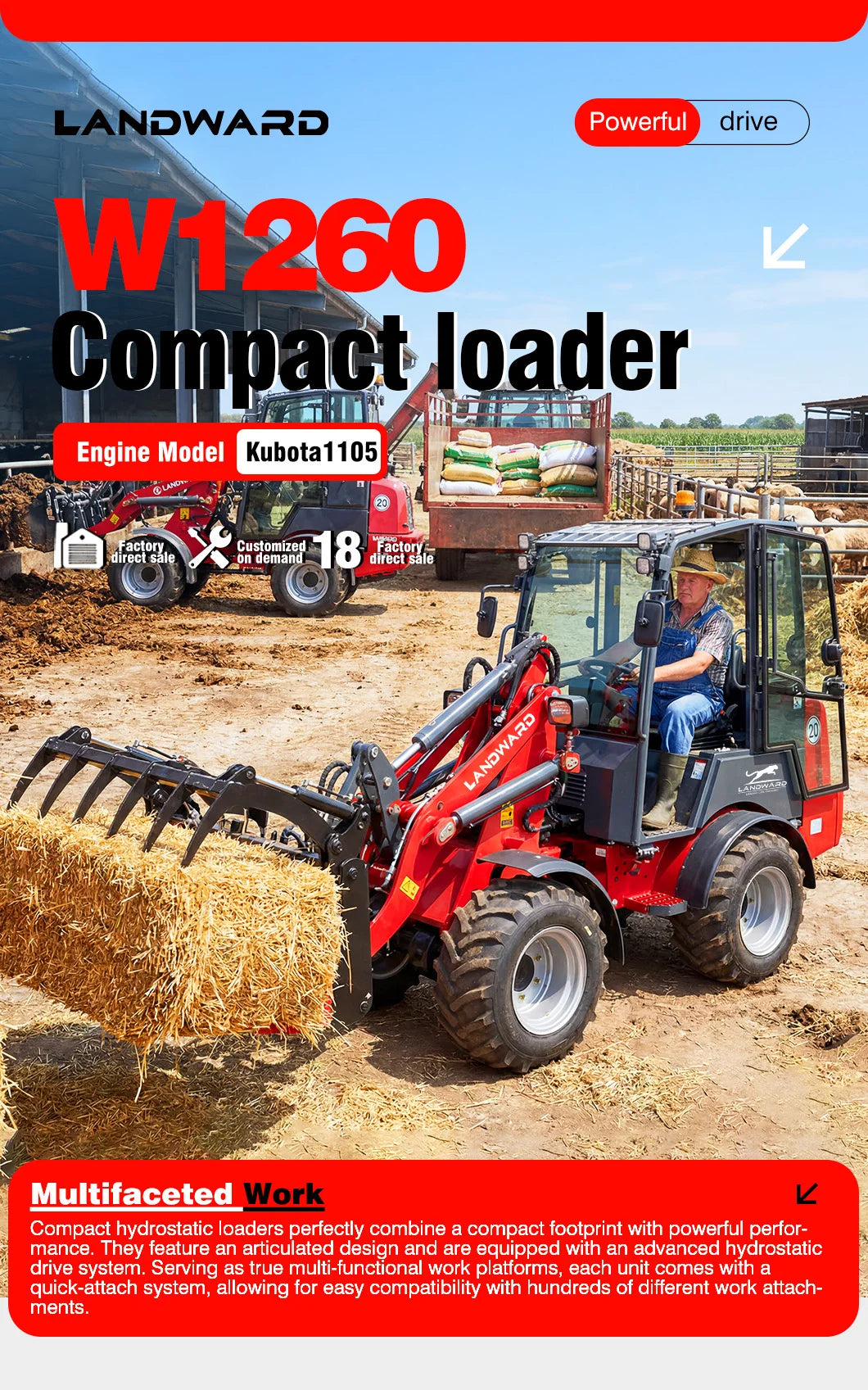

W1260 Diesel Loader | |
Engine | |
Brand/Model |
Kubota D1703 or D1505 |
Type |
3 Cylinders or 4 Cylinders Water Cooling |
Power Output (kw/HP) |
18.4/25 |
Emissios Standard |
Euro V/ Tier 4 Final |
Driving System | |
Type of Drive |
Hydrostatic |
Drive |
Universal Joint Shaft |
Travel Speed ( km/h) |
0-15 |
Electrical System | |
Operating Voltage (V) |
12 |
Battery Capacity (Ah) |
60 |
Alternator Rating (Ah) |
40 |
Hydraulic System | |
Max.Drive Hydraulics Work Pressure (bar) |
320 |
Max. Drive Hydraulics Discharge Volume (l/min) |
72 |
Max. Work Hydraulics Work Pressure (bar) |
225 |
Max.Work Hydraulics Discharge Volume (l/min) |
32 |
Weight | |
Operating Weight(kg) |
2400-2600 |
Tipping Load with Bucket--Machine Straight (kg) |
1160-1690 |
Tipping Load with Bucket--Machine Pivoted(kg) |
980-1440 |
Tipping Load with Pallet Fork-Machine Straight(kg) |
890-1260 |
Tipping Load with Pallet Fork--Machine Pivoted(kg) |
740-1080 |
Bucket Capacity (m3) |
0.28 |
Brake System | |
Operating Brake |
Transmission Drum Brake |
Parking Brake |
Operating and Parking Brake in the Drive Train |
Tyre Size |
31.5*15-15.5 |
Dimensions | |
Total Length |
4169mm |
Total length without bucket |
3368mm |
Bucket pivot point (to center of axle) |
511.5mm |
Wheel base |
1613mm |
Rear overhang |
1079mm |
Height with operator cabin |
2264mm |
Seat Height |
1112mm |
Working Range | |
Total working height |
3591.5mm |
Max.lifting height |
2862mm |
Load-over height |
2455mm |
Dumping height |
1996mm |
Reach(at M) |
655mm |
Digging depth |
173mm |
Total width |
1250-1350mm |
Wheel track |
940mm |
Min.ground clearance |
210mm |
Max.radius |
3100mm |
Inner Radius |
1610mm |
Articulation angle |
43° |
Dumping angle |
50° |

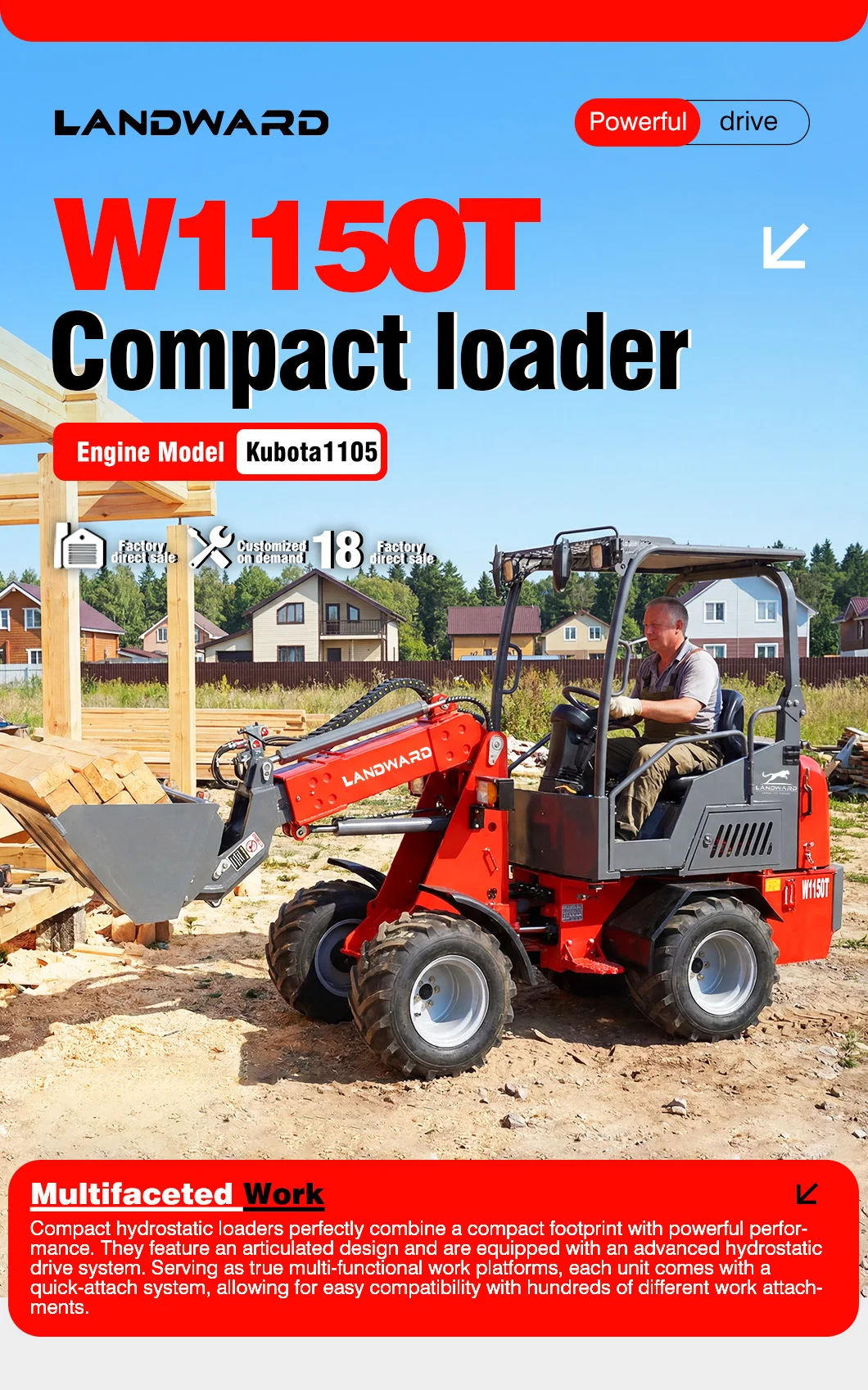

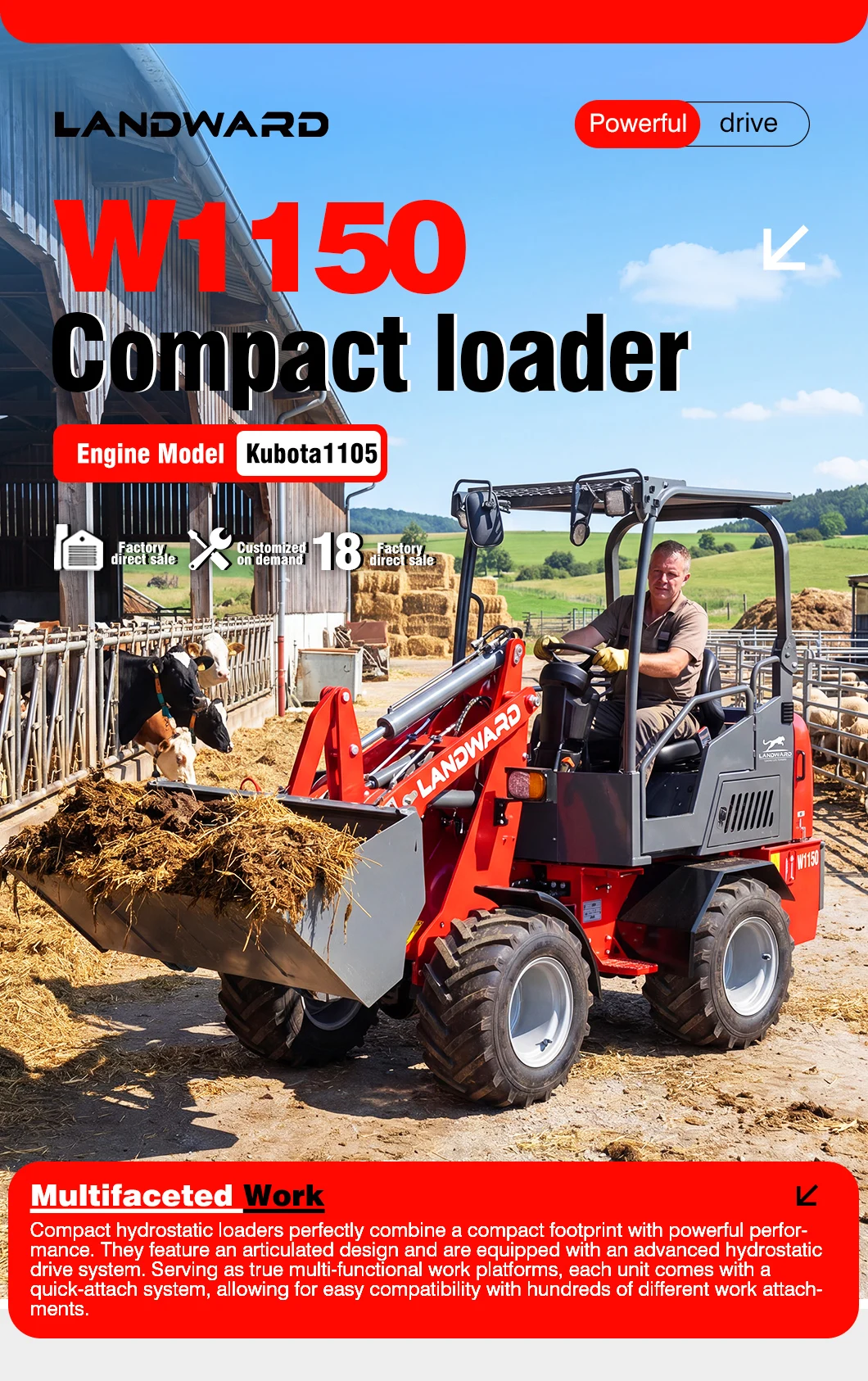

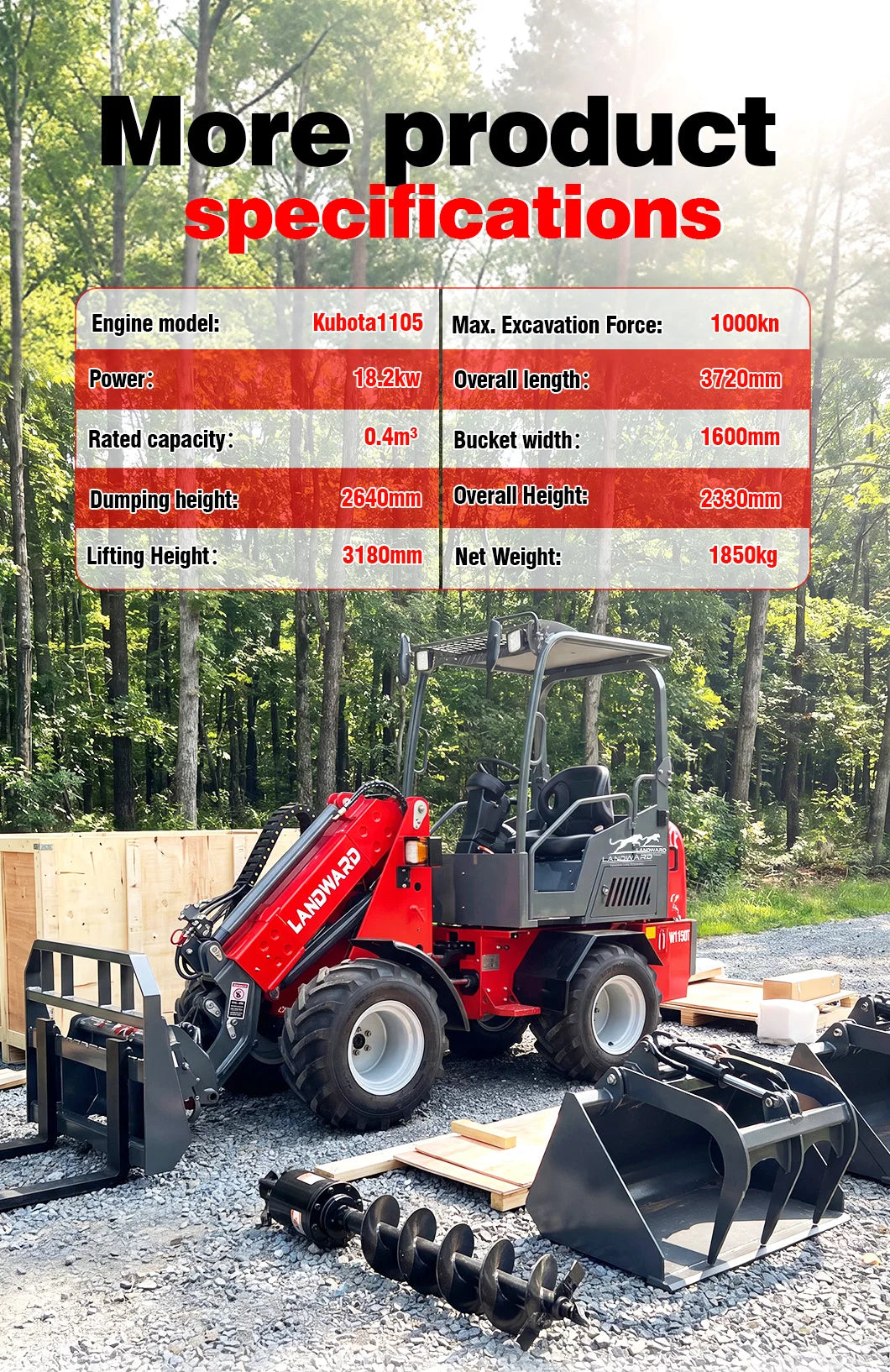

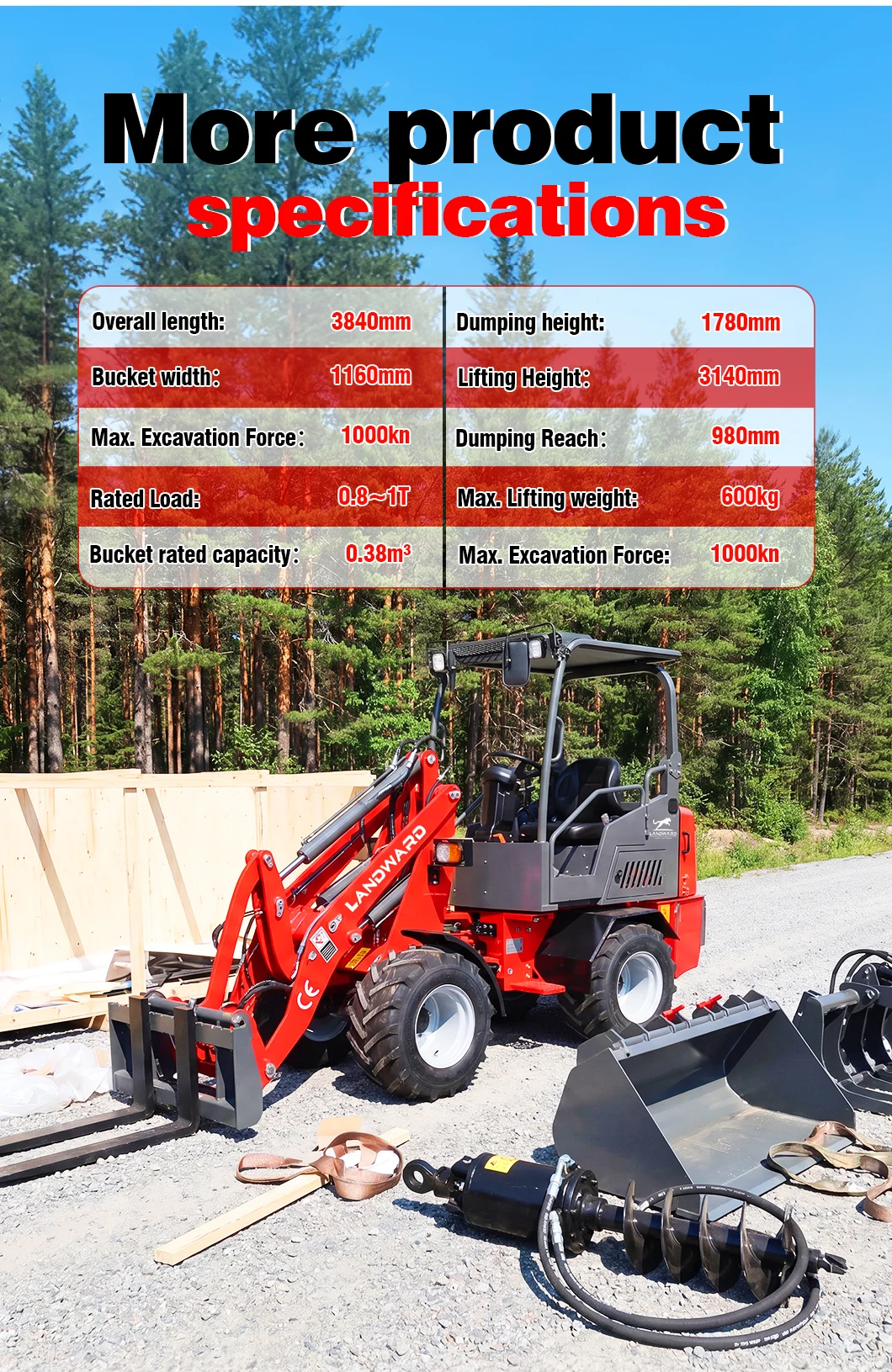

W1150 Wheel Loader | |||
Performance |
Rated Load |
0.8 ~ 1 T |
|
Bucket rated capacity |
0.38m³ |
||
Dumping height |
1780mm |
||
Lifting Height |
3140mm |
||
Dumping Reach |
980mm |
||
Max. Lifting weight |
600kg |
||
Max. Excavation Force |
1000kn |
||
Max. Grade ability |
30° |
||
Max. Turning Angel |
38°±1 |
||
Swing degree of the rear axle |
7° |
||
Dimensions. &.Weight |
Overall length(Bucket on Ground position) |
3840mm |
|
Bucket width(overall width) |
1160 |
||
Overall Height |
2330mm |
||
Wheel base |
850mm |
||
Min Ground Clearance |
240mm |
||
Net Weight |
1980kg |
||
Turning Radius |
2610mm |
||
Transmission System |
Hydraulic System |
Motor No. |
CBHV |
Voltage |
72V |
||
Power |
5000W |
||
Displacement |
18 ml/r |
||
Tyres |
Type |
26*1200-12 |
|
working pressure |
0.3 mpa |
||
Power |
4000W |
||
Number of travel motors |
2 |
||
Qty |
4 |
||
Steering System |
Type of Steering Hydraulic System |
Full Hydraulic Steering System |
|
System Pressure（mpa) |
16 |
||
Type of Steering Pump |
External Gear Pump |
||
Steering Cylinder Bore（mm) |
63 |
||
Qty（pc） |
1 |
||
Braking System |
Service Brake |
Drum Brake |
|
Brake Drum |
250mm |
||
Parking Brake |
Drum Brake |
||
/ |
Distribution Valve |
Model |
DL10 |
Type |
Triple valve stem |
||
Dumping Cylinder-Bore |
Ø80 |
||
Lifting Cylinder-Bore |
Ø63 |
||
Oil Capacity |
Hydraulic Oil Tank |
30L |
|
Brake Fluid |
0.8L |
||
Landward have mini loader from 1ton- 5tons, if need other model which not showed here, please click and find our professional salesman for more information and the best price.
